Vacuum Oven

Download Data Sheet

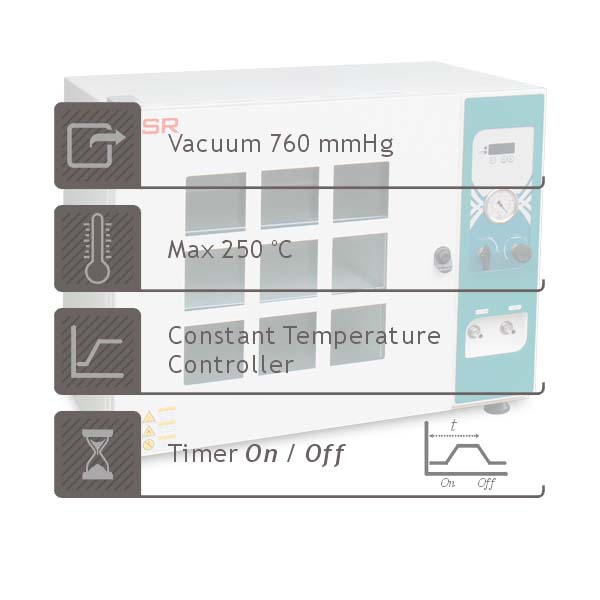

JSVO-30T

Vacuum Oven

27 Liter

Heating

Heat transduction through aluminum shelf

Temp. Range

ambient + 10°C ~ 250°C

Accuracy

± 2.0°C at 120°C (Shelf surface)

Uniformity

± 3.0°C at 120°C (Shelf surface)

Vacuum

760 mmHg

Control

Microprocessor PID Control Auto START / STOP Timer

Sensor

Class A Pt-100 Ω Sensor

Safety

Over-Temperature Cut-Off

Over Current Cut-Off

Material

Body - Epoxy Powder Coated Steel

Chamber – Electropolished Stainless Steel 304

Insulation – 50mm thick woven mineral wool

Shelf -including 2 ea x Anodized Aluminum

Electric

220±10% VAC 50/60Hz 1-Phase

Plug config.

CEE 7/7 Schuko or BS 1363

Controller

JSC-0D Digital PID Controller

• ±0.1°C Digital PID Controller with LED Display

• Automatic START/STOP timer

• Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous operation

• Temperature calibration

• Auto-tuning function

• Class A Pt-100 Ω sensor

Construction

• Durable epoxy powder coated metallic casing

• Corrosion resistant Electro-Polished Stainless Steel 304 chamber

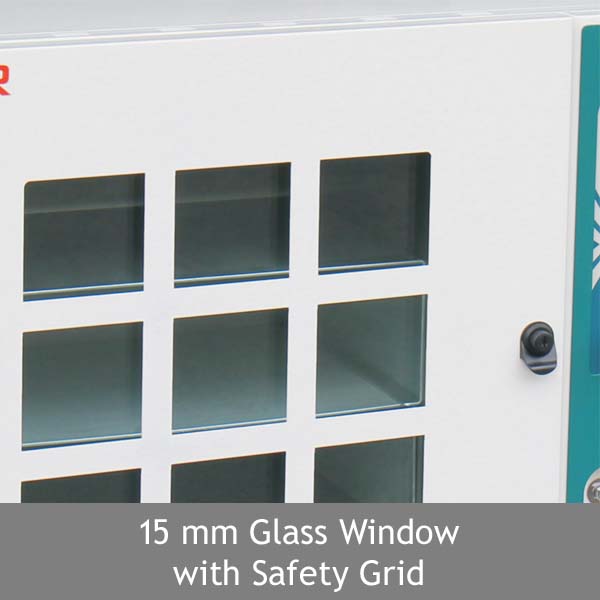

• 15 mm thick tempered safety glass window for easy observation of samples and window grill for safety

Performance

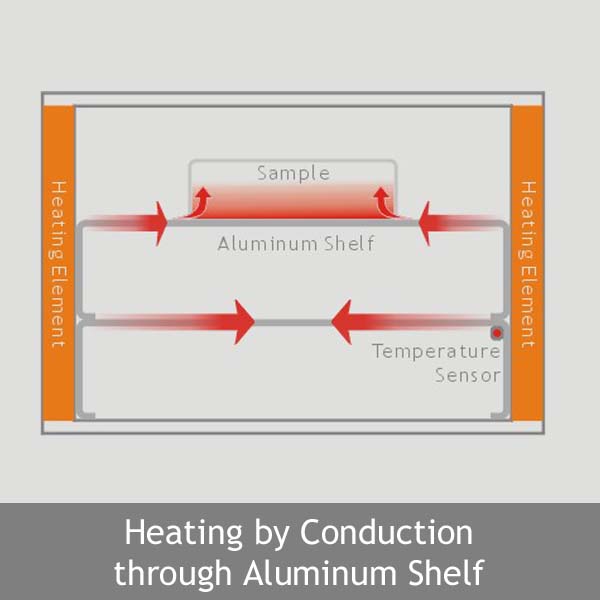

• Heater from side wall transduces heat through aluminum shelf to maintain uniform temperature over the surface of shelf

• Class A Pt-100 Ω sensor embedded into the aluminum shelf to measure accurate temperature of the shelf

• 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust

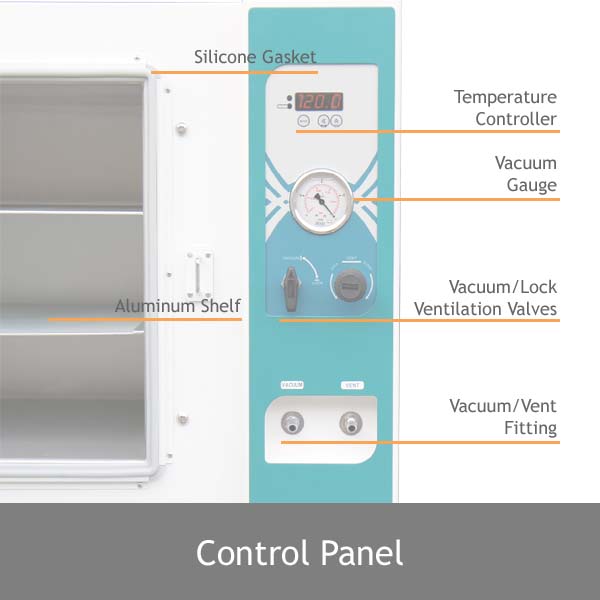

Convenience

• Corrosion resistant Stainless Steel 304 (ASTM 304) solid chamber interior

• Door with 15mm thick tempered safety glass window with safety grill

• Vacuum tight high density one-piece silicone door gasket

• Air tight one touch door latch

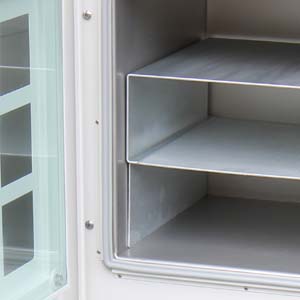

• Two tier aluminum shelf

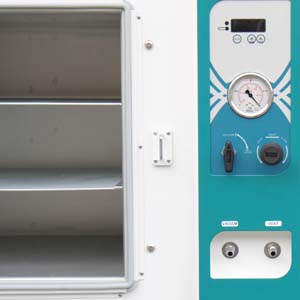

• Equipped with Vacuum Gauge ~ 760 mmHg

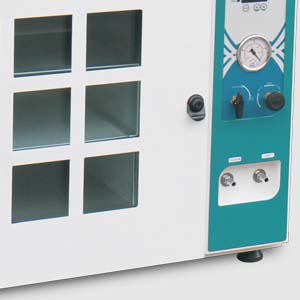

• Two way valve to control vacuum and lock

• Adjustable needle valve for fine control of vent speed

Safety

• DUAL OVER TEMP. CUT-OFF

    Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature

    Analog system cut-off heater 10% above set temp.

• MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit

• SENSOR DISCONNECTION ALARM

• OVER CURRENT CUT-OFF : Electrical Leakage Breaker

             Art No.

JSVO-30T

JSVO-60T

Chamber Volume

27 L

64 L

Dimensions

Inner

300 x 300 x 300

400 x 400 x 400

W x D x H mm

Outer

665 x 470 x 535

765 x 575 x 635

Glass Window

W265 x H285

W350 x H350

15 mm thick Tempered Safety Glass

Temperature Range

ambient +10°C to 250°C

Accuracy at 120°C

± 2.0°C

Uniformity at 120°C

± 3.0°C

Maximum Vacuum

760 mmHg

Fitting

Vacuum/Vent Ø 11 mm Hose barb

Valves

Vacuum/Lock : 2-Way Valve   Vent : Adjustable Needle Valve

No. of Shelves

2

Heater Capacity

2 x 1.0 kW

4 x 700 W

Power Rating

9.5 Amp

13.2 Amp

Power Plug

CEE 7/7 Schuko European Standard   or BS 1363 British Plug

Art No.

Descriptions

Capacity

Elec. Req.

Net Wt.

Ship Wt.

JSVO-30T

Vacuum Oven

27 L

220 VAC 50/60 Hz

53 kg

57 kg

JSVO-60T

Vacuum Oven

64 L

220 VAC 50/60 Hz

86 kg

94 kg

Art No.

Aluminum Shelf

PHS-A91

for JSVO-30T       W295 x D250 mm

PHS-A92

for JSVO-60T       W395 x D350 mm

Art No.

Vacuum Pump

W2V10

Rotary Vane Vacuum Pump

100L/min 5x10^-4 Torr

Mfr. Woosung Vacuum, Korea 220VAC

MZ2C NT

Chemical Resistant Diaphragm Vacuum Pump

Mfr. Vacuubrand, Germany 220VAC

Art No.

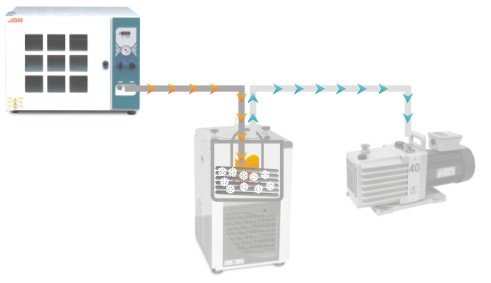

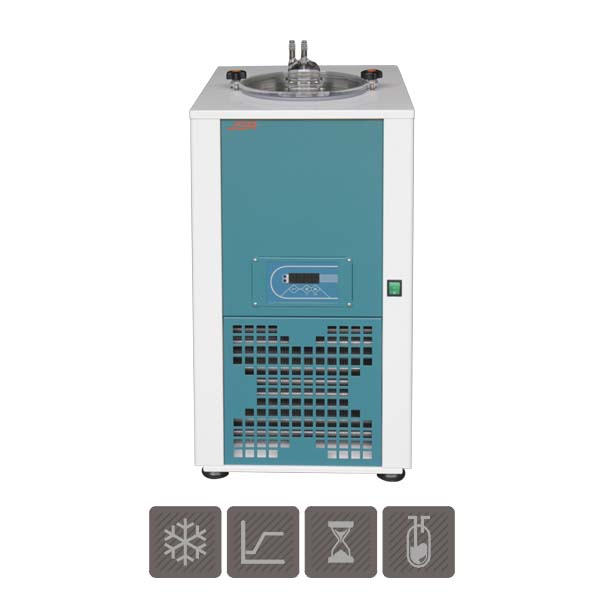

Cold Trap

JSCT-35C

Cold Trap Bath, - 35°C, 7.2 L

JSCT-55ULT

Ultra Low Temp. Cold Trap Bath, - 55°C, 7.2 L

JSCT-85ULT

Ultra Low Temp. Cold Trap Bath, - 85°C, 7.2 L

Art No.

OHG-001

Glass Trap, 500 ml

OHV-001

High Vacuum Hose, ID 9 mm x OD 24 mm x 1 meter
