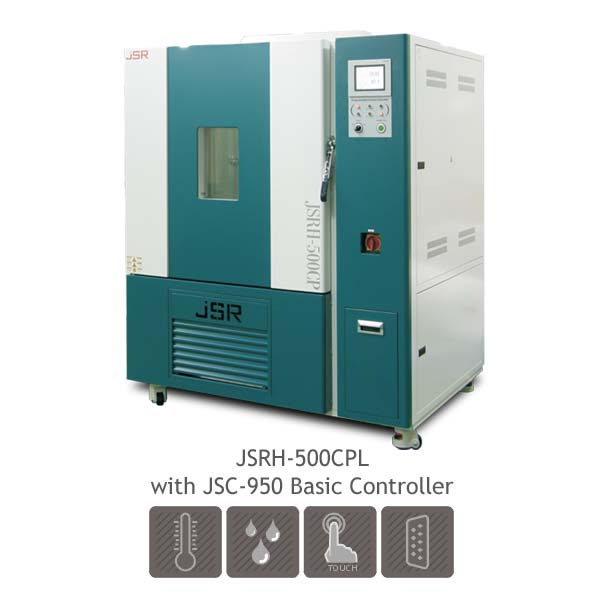

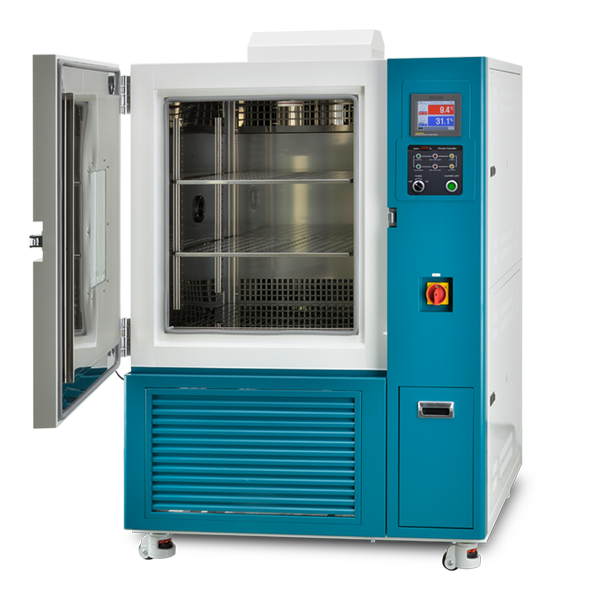

Premium Climatic Chamber -40°C ~ +150°C
| Primary Applications: | Temperature Range: | Humidity Range: | Chamber Volume: |
|
Premium Climatic Chamber provides a comprehensive solution for stability, reliability, and accelerated aging tests. It delivers precise environmental control across a wide range of parts, components, and finished products. |
-40.0°C ~ 150.0°C | 35 ~ 98% RH |
150 liter 252 liter 448 liter 800 liter |
----------
Documents
| JSRH-150CPL | JSRH-250CPL | JSRH-500CPL | JSRH-800CPL |
 |
|
|
|
----------
Common Specifications
|
Heating |
Forced Air Convection |
|
Cooling |
Cascade System, CFC Free Air Cooled Compressor |
|
Humidifier |
Water Boiling Humidifier |
|
Temp. Range |
- 40°C ~ 150°C ( no humidity control below 5°C ) |
|
Accuracy |
± 0.3°C at 20.0°C, (JSRH-250) |
|
Uniformity |
± 0.7°C at 20.0°C, (JSRH-250) |
|
Temp. Sensor |
Pt-100 Ω Sensor |
|
Humidity Range |
35 ~ 98% RH ( no humidity control below 5°C ) |
|
Accuracy |
± 0.4 % at 60% RH (JSRH-250) |
|
Uniformity |
± 1.5 % at 60% RH (JSRH-250) |
|
Humidity Sensor |
Electronic Sensor, Built-in sensor calibration |
|
Controller |

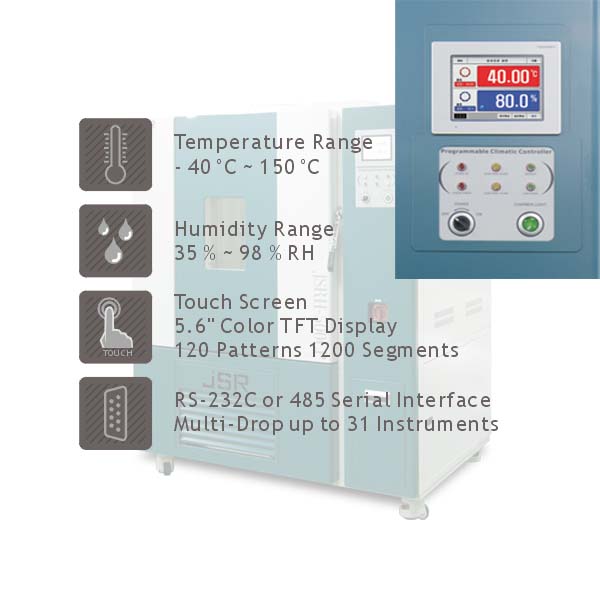

JSC-950 5.6" TFT-LCD Touch Screen |
|

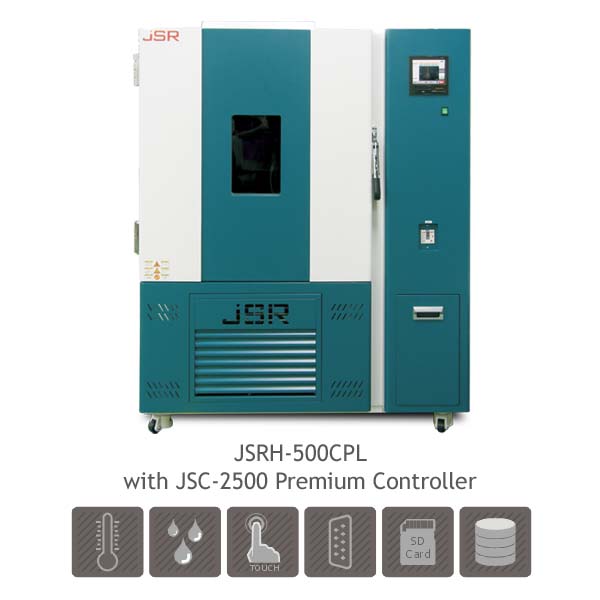

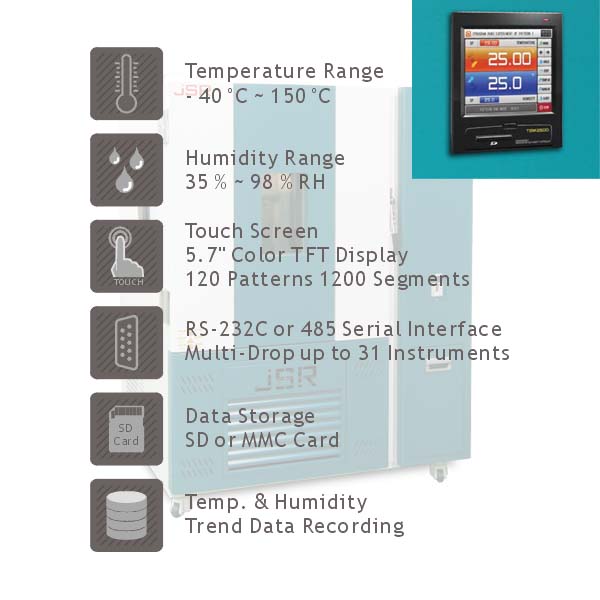

JSC-2500 5.7" Full Color TFT-LCD Touch Screen [option] |
|
|
Safety |
Over-Temperature Cut-Off |
|
Max. Temp. Cut-Off |
|
|
Over Current Cut-Off |
|
|
Low Water Level Cut-Off |
|
|
Material |
Body : Epoxy Powder Coated Steel |
|
Chamber : Stainless Steel 304 |
|
|
Triple Layer Vacuum Glass Window with Heater |
|
|
Including Stainless Steel Wire Shelf |
|
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug Config. |
30 AMP or 50AMP |
----------
Featured Controller
 |
Touch screen interface Easy access to setup operate with touch screen |
 |
Digital recorder function Real-time monitoring displays as trend graph and easy data acquisitions of PV and SP No additional recorder required |
|
 |
SD memory card support The pattern and parameter can be up/download via SD memory card |
 |
Multi-language system Supporting of various languages of korean, english, Chinese, Japanese and russian |
|
 |
Powerful communication RS232C/485 serial 115,200bps Ethernet [option] |
 |
Free PC software Free PC multi-monitoring software for communication and SD viewer for data management of SD data |
|
 |
Precision Control 18bit A/D converter Temperature: ±0.1% of full scale ±1 digit Humidity: ±1.0% of full scale ±1 digit |
 |
Operation time management Display of the operation starting time, estimated termination time and operation time up to now |
|
-----

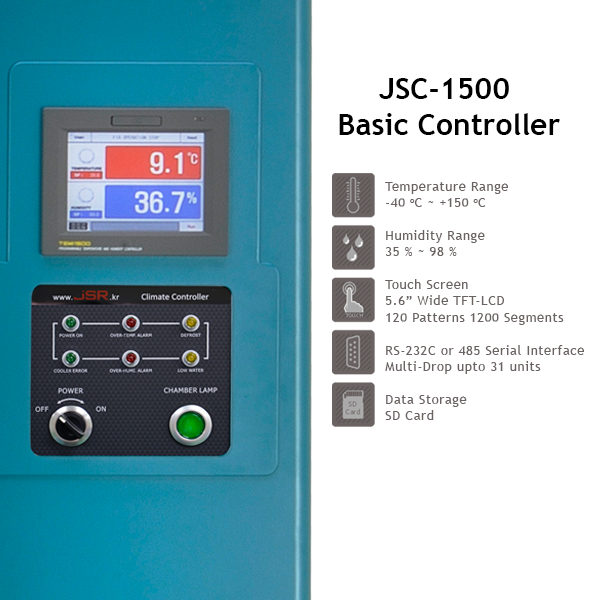

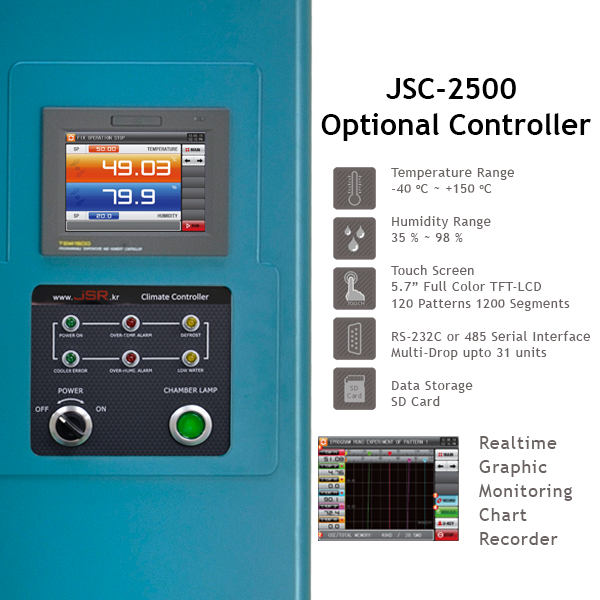

| JSC-1500 Basic Controller | JSC-2500 Optional Controller | |
 |
 |
|
----
| 5.6" TFT-LCD | 5.7" Full Color TFT-LCD | |||
|
|
Resolution 640x480 64MB Internal Memory stores up to 90 days of continuous temperature and humidity data at a precise 1-second sampling interval |
 |
Resolution 640x480 64MB Internal Memory stores up to 90 days of continuous temperature and humidity data at a precise 1-second sampling interval |
|
| External Memory | External Memory | |||
|
|
SD/SDHC card(FAT32) Logging function: Program pattern/Parameter can be backup and restored, PV/SP can be stored. |
 |
SD/SDHC card(FAT32) 2GB Logging function: Program pattern/Parameter can be backup and restored, PV/SP can be stored. |
|
| Program | Program | |||
|
|

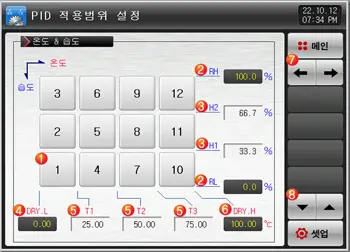

120 Patterns/1200 Segments Segment time: Max. 999hours 59minutes 59seconds, Up/Down slope rate, Wait, Operating start code, Pattern name, Power stop mode, PT end mode Pattern/Segment repeat operation 9 PID groups (6 PID groups for TEMP.· HUMI. + 3 PID groups for TEMP. only) |
|
120 Patterns/1200 Segments Segment time: Max. 999hours 59minutes 59seconds, Up/Down slope rate, Wait, Operating start code, Pattern name, Power stop mode, PT end mode Pattern/Segment repeat operation 9 PID groups (6 PID groups for TEMP.· HUMI. + 3 PID groups for TEMP. only) |
|

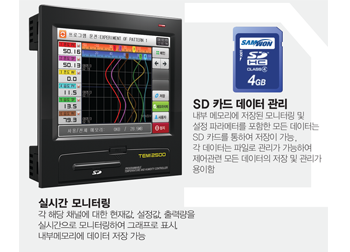

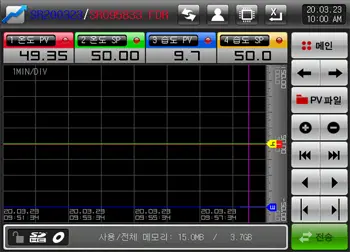

| Digital recorder function | Digital recorder function | |||
|
|
Real-Time Monitoring: PV, SV, and MV monitoring for each channel via intuitive trend graphs. Secure, automated data recording to the built-in internal memory. SD Card Adapter: Backs up trend logs and setup parameters from internal memory directly to an SD card. File-based data storage for streamlined management of operation records and system settings. |
|
Real-Time Monitoring: PV, SV, and MV monitoring for each channel via intuitive trend graphs. Secure, automated data recording to the built-in internal memory. SD Card Adapter: Backs up trend logs and setup parameters from internal memory directly to an SD card. File-based data storage for streamlined management of operation records and system settings. On-Screen Trend Graph Display: Real-time trend graphing and instant on-screen replay of historical data files stored in the internal memory. |
|

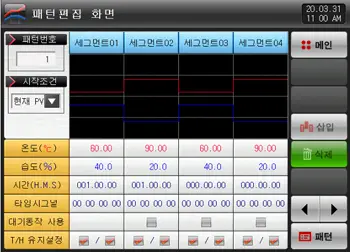

| Program Setting | Program Setting | |||
|
|
Instant recall of saved program patterns. Effortless program upload/download via seamless PC connectivity. |
|
Instant recall of saved program patterns. Effortless program upload/download via seamless PC connectivity. |
|
| Powerful Communication | Powerful Communication | |||
|
|
RS232C RS485 Max. 31 nodes. Max. 115,200 bps Option : Ethernet(TCP/IP) |
|
RS232C RS485 Max. 31 nodes. Max. 115,200 bps Option : Ethernet(TCP/IP) |
|

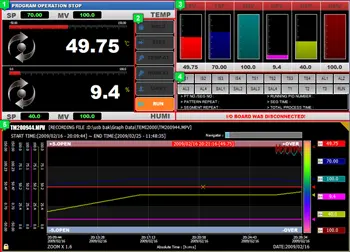

| PC Software | PC Software | |||
|
|
Effectively control and monitoring devices |
|
Effectively control and monitoring devices |
-----

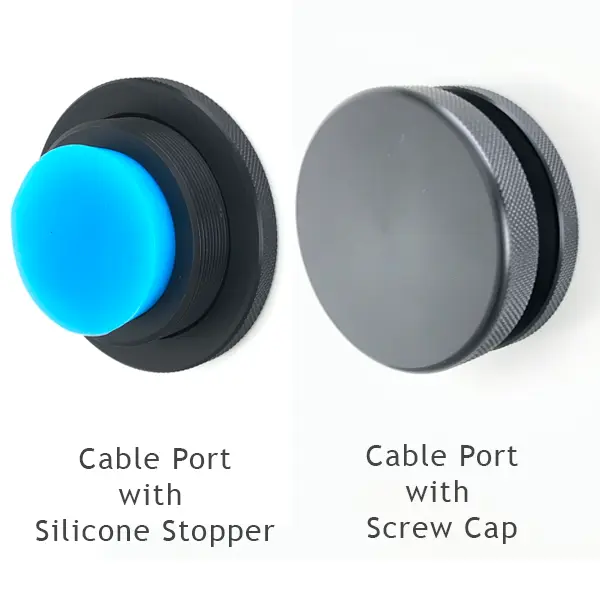

| 50mm Cable Access Port | Chart Recorder [option] | |
|
Equipped with a silicone stopper for running cables, and a secure screw cap to seal the port when not in use. |
sR-10000 6-channel Yokogawa Temperature+Humidity 2 channel |
|

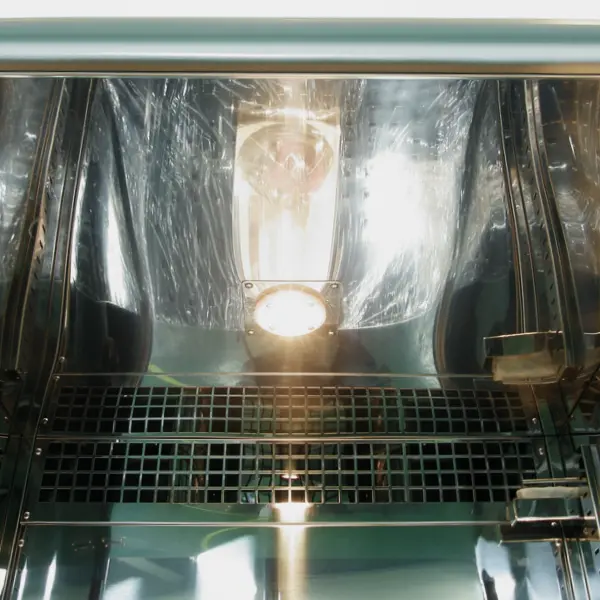

| Easy maintenance | Chamber LED Light | |
|
|
|
|
| In-built Water Reservoir | Heated Glass Window | |
|
Features an integrated humidifier water supply tank for space-saving design and easy maintenance. |

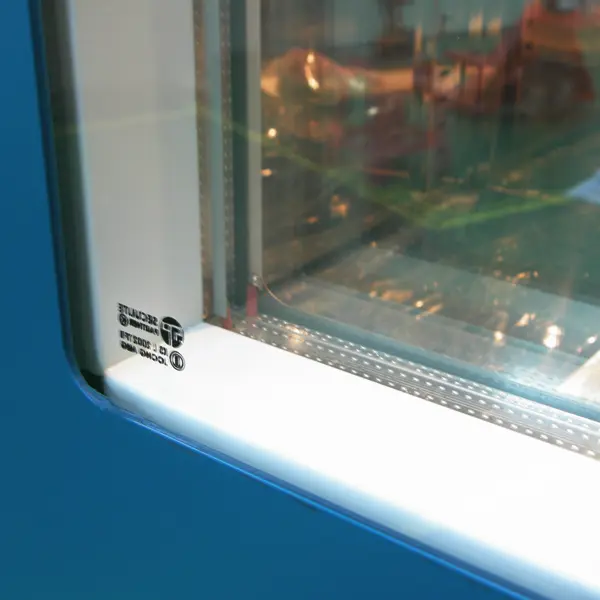

Heated triple-layer glass window effectively prevents condensation for clear interior viewing. |
----
Construction
Heavy-Duty Exterior: Durable epoxy powder-coated metallic casing for superior scratch and chemical resistance.
Premium Interior Chamber: Corrosion-resistant Stainless Steel 304 chamber ensures long-term durability and clean testing environments.

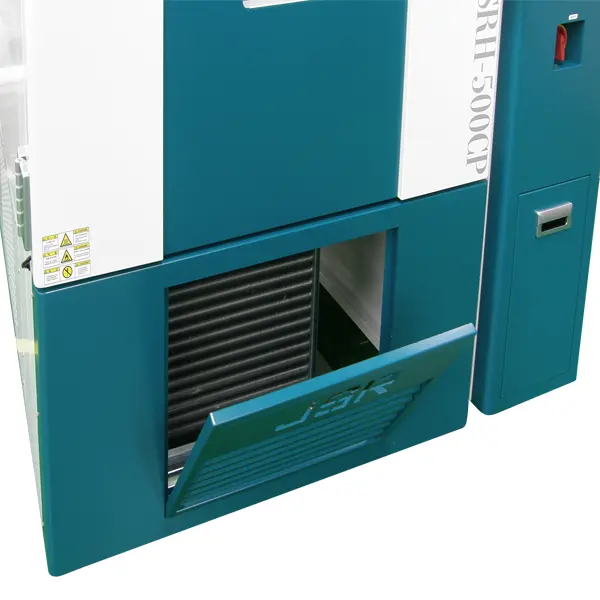

High-Efficiency Thermal System: Equipped with a durable Stainless Steel 304 sheath heater and a copper-aluminum finned evaporator for optimal heat exchange.
Flexible Sample Loading: Features removable and height-adjustable wire shelving to accommodate various sample sizes.
Intelligent Humidification: Built-in humidifier with an automatic water supply system for uninterrupted testing.
Heated Observation Window: Double-layer, vacuum-insulated tempered safety glass window with an integrated anti-fogging heater.
----
Performance
Versatile Environmental Control: Offers a wide range of precise temperature and humidity programming.
Unmatched Reliability: The high-performance control system ensures long-term stability for extended reliability and accelerated aging tests under diverse conditions.
Superior Thermal Uniformity: Forced air circulation system delivers consistent temperature and humidity distribution throughout the entire chamber.
High-Resolution Control: Delivers ultra-precise environmental regulation with ±0.1°C temperature resolution and ±1.0% RH humidity resolution.
Advanced Cooling System: Equipped with a premium, cascade system for powerful and reliable cooling performance.
----
Convenience
Hermetic Door Seal: Outer door features a dual-gasket system and an airtight compression door lock to eliminate thermal leakage.
Convenient Access Port: A ∅50 mm access port equipped with a silicone stopper allows effortless cable connection into the chamber.
Triple-Layer Sight Glass: Heated triple-layer window prevents condensation, ensuring a crystal-clear view at all times.
Integrated Chamber Lighting: High-visibility internal light allows convenient, real-time monitoring of samples during operation.
Self-Contained Water Supply: Built-in water tank dedicated to the humidifier for easy maintenance.

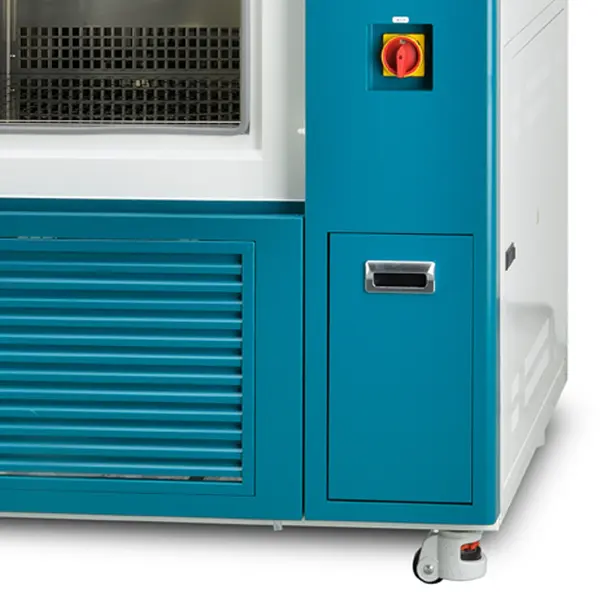

Effortless Mobility: Heavy-duty built-in casters enable smooth transport and easy laboratory relocation.
----
Safety
Dual Over-Temperature Cut-Off System:
Digital Protection: Automatically cuts off the heater and triggers an Audio-Visual Alarm if the temperature rises +2°C above the set point.
Analog Backup: Independent analog system cuts off the heater at 10% above the set temperature for redundant safety.
Max Temperature Limit Protection: Instantly shuts down the heater and activates an Audio-Visual Alarm if the temperature exceeds +1°C above the chamber’s maximum limit.
Sensor Disconnection Alarm: Detects sensor failures immediately to prevent runaway heating or cooling.
Water Level & Humidifier Protection: Features a Low Water Level Alarm & Cut-Off alongside Humidifier Dry-Burn Protection to prevent component damage.
Electrical Safety: Equipped with an Over-Current Cut-Off (Electric Leakage Breaker) to safeguard both the user and the laboratory infrastructure.
----
Model
|
Art No. |
|||||
|
Chamber Volume |
150 L |
252 L |
448 L |
800 L |
|
|
Dimensions |
Inner |
500x500x600 |
600x600x700 |
800x700x800 |
1000x800x1000 |
|
W x D x H mm |
Outer |
1030x905x1505 |
1130x1005x1655 |
1380x1135x1805 |
1530x1235x2035 |
|
Temperature Range |
-40°C ~ 150°C (without Humidification) |
||||
|
Accuracy at 20.0°C |
± 0.2°C |
± 0.3°C |
± 0.3°C |
± 0.4°C |
|
|
Uniformity at 20.0°C |
± 0.7°C |
± 0.7°C |
± 1.0°C |
± 1.2°C |
|
|
Humidity Range |
35% ~ 98% RH |
||||
|
Accuracy at 60% RH |
± 0.3 % |
± 0.4 % |
± 0.4 % |
± 0.8 % |
|
|
Uniformity at 60% RH |
± 1.0 % |
± 1.5 % |
± 1.8 % |
± 2.5 % |
|
|
Number of shelves/Max. |
2 / 19 |
2 / 23 |
3 / 27 |
3 / 35 |
|
|
Cable Port |
1 ea x ∅50 mm |
||||
|
Humidity Water Supply |
Built-in Water Tank |
||||
|
Heater Capacity |
4.5 kW |
4.8 kW |
5.5 kW |
7.0 kW |
|
|
Refrigeration System |
CFC-Free Air Cooled Hermetically Sealed Compressor |
||||
|
Electric Requirement |
220VAC 50/60Hz 1P |
||||
|
Power Rating |
31.7 Amp |
33.1 Amp |
37.5 Amp |
40.1 Amp |
|
|
Power Plug |
30 AMP |
30 AMP |
50 AMP |
50 AMP |
|
-----
Ordering Information
|
Art No. |
Descriptions |
Capacity |
Elec. Req. |
|
JSRH-150CPL |
Premium Climatic Chamber |
150 L |
220 VAC 50/60 Hz |
|
JSRH-250CPL |
Premium Climatic Chamber |
252 L |
220 VAC 50/60 Hz |
|
JSRH-500CPL |
Premium Climatic Chamber |
448 L |
220 VAC 50/60 Hz |
|
JSRH-800CPL |
Premium Climatic Chamber |
800 L |
220 VAC 50/60 Hz |
-----
Factory built-in Options
| Art No. | Descriptions |
| OEC-006 | JSC-2500 Touch Screen Controller |
| OER-010 | 6-Channel Chart Recorder |
-----
Optional Accessories
| Art No. | Perforated Shelf, Stainless Steel 304 |
| PHS-A06 | for JSRH-150 W470 x D480 mm |
| PHS-A09 | for JSRH-250 W570 x D580 mm |
| PHS-A19 | for JSRH-500 W770 x D680 mm |
| PHS-A16 | for JSRH-800 W970 x D780 mm |
Premium Climatic Chamber -40°C ~ +150°C
Engineered for excellence, the JSRH-xxxCPL Series Premium Climatic Chamber provides Temperature Range: -40°C to 150°C, Humidity Range: 35% to 98% RH, 5.6" Programmable Touch Screen Controller, Chamber Volume : 150, 250, 500, 800 liters

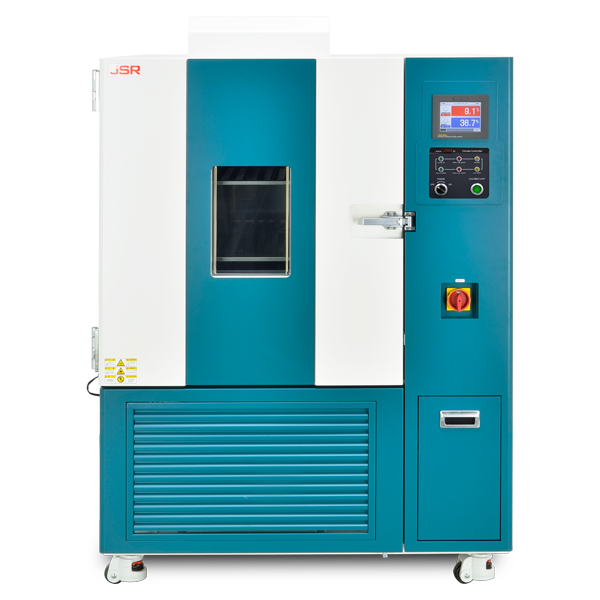

Premium Climatic Chamber -20°C ~ +150°C
