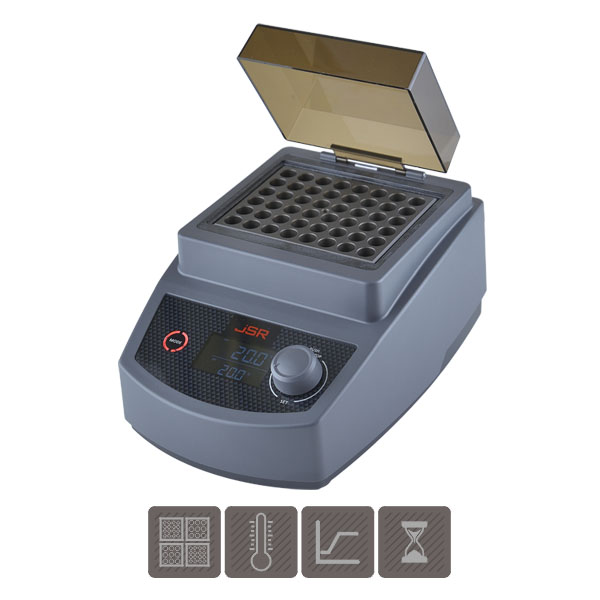

Dry Bath Block Heater
-----
| Ideal Applications: | Versatile Tube Compatibility: | |
|
The anodized, interchangeable modular blocks can be switched out to accommodate a wide variety of tubes, including PCR, Eppendorf, and microcentrifuge tubes. |
-----
Features

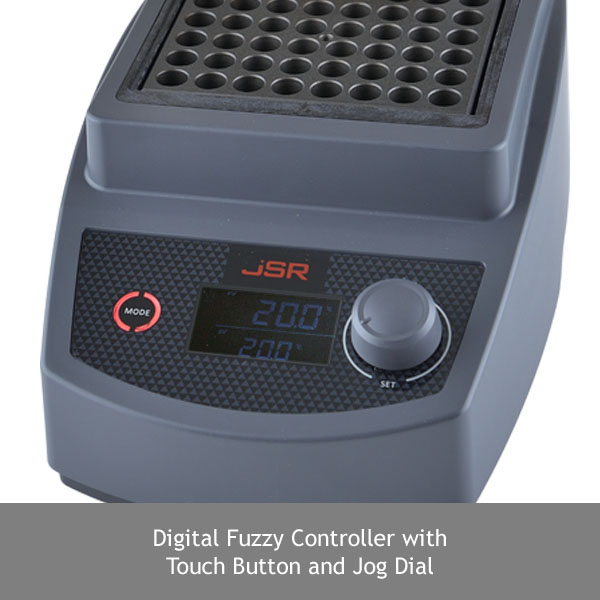

----Controller
· Advanced MCU Processor: Utilizes precise temperature control technology.
· Capacitive Touch Buttons: Highly responsive multi-functional buttons compatible with all types of latex gloves as well as bare fingers.
· Intuitive Jog Dial: Allows quick and convenient adjustment of temperature and timer settings. Features a push-to-start/stop control.
· Backlit LCD Display: High-fidelity, crystal-clear screen displays complete setting and operating conditions at a glance. Easily monitor set values, current temperature, and remaining time.
-----
----Construction

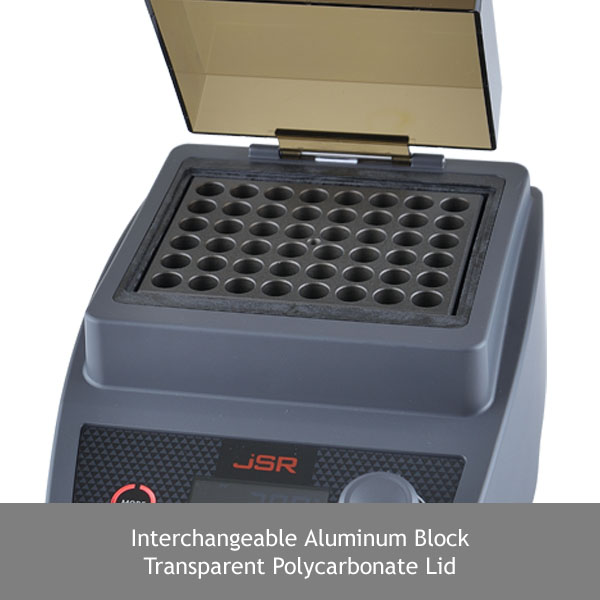

· Transparent polycarbonate lid for easy sample viewing.
· Durable molded heater.
· Rugged, chemical-resistant ABS plastic body.
· High-quality, heat-resistant PPS block bath and premium insulation.
-----
----Performance
· Temperature Range: Ambient +5°C to 150°C.
· Display Resolution: 0.1°C increments.
· Accuracy: ±0.1°C at 37°C.
· Sensor Technology: CA sensor embedded in the top plate for highly accurate temperature measurement and control.
· Timer Range: 1 minute to 99 hours and 59 minutes.
-----
----Convenience

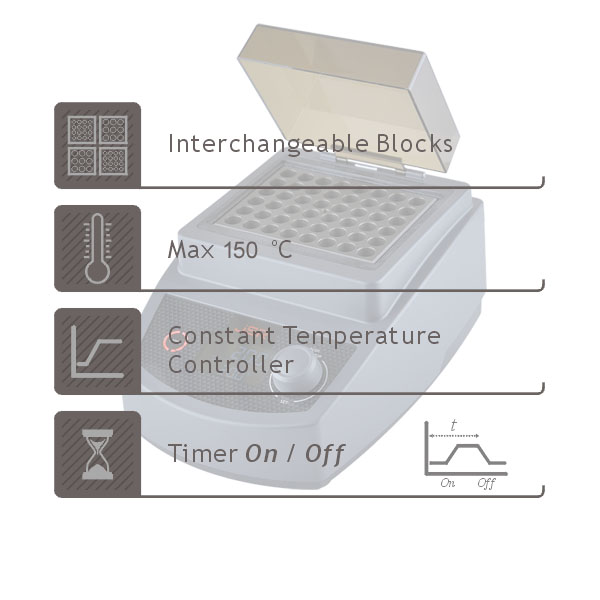

· Quick-change, interchangeable aluminum blocks.
· Versatile block options accommodating 0.2 ml PCR tubes up to Ø18 mm tubes.
-----
----Safety
· Over-temperature protection.
· Over-current protection.
-
Specifications
|
Heating |
Heat transduction through aluminum block |
|
Temp. Range |
ambient + 10°C ~ 150°C |
|
Accuracy |
± 0.1°C at 37.0°C ± 0.2°C at 90.0°C
± 0.4°C at 135.0°C |
|
Control |
Advanced MCU processor with Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - ABS Plastic |
|
|
Bath – Heat Resistant PPS Plastic |
|
|
Block – Anodized Aluminum |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko |
-----
Model
|
Art. No. |
|
|
Temperature Control |
|
|
Temp. Range |
Ambient +5°C to +150°C |
|
Temp. Accuracy |
±0.1°C at 37°C |
|
|
±0.2°C at 90°C |
|
|
±0.4°C at 135°C |
|
Resolution |
0.1°C Display, 0.1°C Control |
|
Heat up speed |
Approx 5°C /min |
|
|
|
|
Dimensions |
|
|
Block (W x D x H) |
120 x 92 x 40 / 50 mm |
|
Outer (W x D x H) |
170 x 250 x 145 mm |
|
|
|
|
Controller |
|
|
Type |
Digital Fuzzy Control with Capacitive Touch Button and Jog Dial |
|
Timer |
99hr 59min by 1 min division |
|
Display |
Full Size Digital Back Light LCD Display |
|
|
Independent ON/OFF Switch |
|
|
|
|
Heater |
|
|
Type |
Molded heater |
|
Heater Output |
300 Watt |
|
|
|
|
Safety Data |
|
|
Safety Device |
Over Temperature Protection |
|
|
Over Load Protection |
|
|
Over Current Protection |
|
|
|
|
Material Data |
|
|
Body |
ABS |
|
Block Bath |
PPS |
|
Lid |
Polycarbonate |
|
Block |
Anodized Aluminum |
|
|
|
|
Electrical Data |
|
|
Rated voltage [V] |
230 ± 10% VAC |
|
Power frequency [Hz] |
50/60Hz |
|
Nominal power [W] |
300 |
|
Unit fuse [A] |
0 |
|
Phase (Nominal voltage) |
1~ |
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|
|
|
|
Usable Condition |
|
|
Temp. & Humidity |
5oC - 40 oC, < 80% RH |
|
|
|
|
Packaging Data |
|
|
Shipping Dims. (W x D x H mm ) |
320 x 230 x 260 |
|
Type of packaging |
Carton |
|
Net Weight (kg) |
1.6 |
|
Shipping Weight (kg) |
2.1 |
-----
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSDB-01T-PK |
Dry Bath Heating Block SET |
230 VAC 1~ ph 50/60Hz |
|
including |
PHB-20 Microtube Block 1.5/2.0ml, , Ø11 x 48 hole (H36mm) |
|
|
|
|
|
|
JSDB-01T |
Dry Bath Heating Block MAIN BODY ONLY |
230 VAC 1~ ph 50/60Hz |
|
|
|
|
-
Optional Accessories
|
Art. No. |
Descriptions |
|
PHB-02 |
Microtube Block for 0.2ml Tubes, Ø6 x 96 hole (H16mm) |
|
PHB-05 |
Microtube Block for 0.5ml Tubes, Ø7.7 x 63 hole (H29.5mm) |
|
PHB-20 |
Microtube Block for 1.5/ 2.0ml Tubes, Ø11 x 48 hole (H36mm) |
|
PHB-15 |
Conical tube Block for 15ml Tubes, Ø16 x 15 hole (H47mm) |
|
PHB-50 |
Conical tube Block for 50ml Tubes, Ø28.7 x 8 hole (H47mm) |
|
PHB-1248 |
Standard test tubes Block, Ø12 x 48 hole (H35mm) |
|
PHB-1330 |
Standard test tubes Block, Ø13 x 30 hole (H47mm) |
|
PHB-1530 |
Standard test tubes Block, Ø15 x 30 hole (H47mm) |
|
PHB-1624 |
Standard test tubes Block, Ø16.5 x 24 hole (H47mm) |
|
PHB-1824 |
Standard test tubes Block, Ø18 x 24 hole (H47mm) |
|
PHB-100 |
Block Extraction Knob |
