Tabletop Shaker
JSOS-500 Orbital Shaker is heavy duty and large capacity shaker for agitating samples in a container (e.g. flasks, bottles, tubes) in ambient condition to aerating, mixing and extracting samples. Various application in chemistry, biomedical, pharmaceutical, cell culture, tissue culture, environmental and agriculture applications.
 |
download_catalog_tabletop_shaker.pdf |
Specifications
|
Shaking Motion |
Orbital and Reciprocal |
|
Speed Range |
20 ~ 350 rpm (orbital) |
|
Accuracy |
± 1 rpm |
|
Control |
Microprocessor Feedback Control |
|
|
Auto STOP Timer |
|
Safety |
Over-Speed Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Spring Rack – Stainless Steel 304 |
|
|
Flask Platform – Epoxy Powder Coated Steel |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Model
|
Art No. |
||
|
Dimensions |
Platform |
W495 x D495 mm |
|
|
Oversized Platform |
W700 x D650 mm |
|
W x D x H mm |
Outer |
545 x 565 x 350 |
|
|
Max. load |
35 kgs |
|
Shaking |
Motion |
Orbital or Reciprocal |
|
|
Speed |
20 ~ 350 rpm |
|
|
Stroke |
20 mm |
|
Motor Capacity |
25 Watt |
|
|
Power Rating |
0.5 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
|
Features
|
Controller |
|

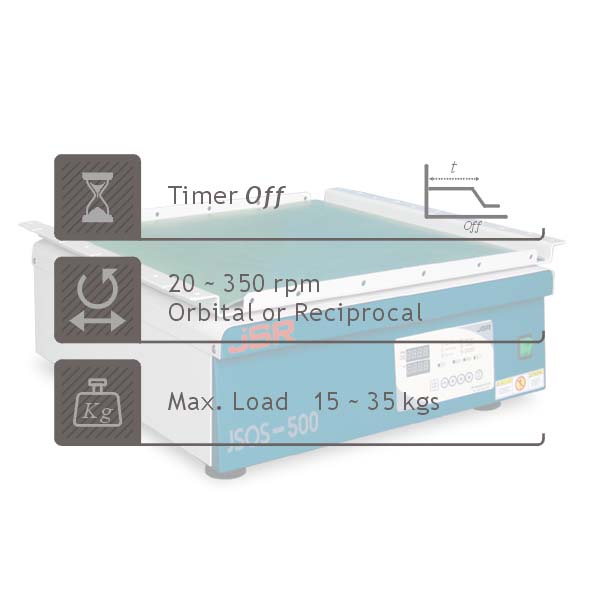

JSC-TACHO Digital Shaking Controller Digital feedback RPM controller with automatic STOP timer, max. 99min 59sec / 99hr 59min / continuous 4 digit dual digital LED displays RPM and TIME Inbuilt rpm calibration function Adjustable smooth start and stop motion
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 Universal Spring Rack
|
|
Performance |
|
Speed control from 20 to 350 rpm Precise feedback control within ± 1 rpm Durable shaking mechanism with powerful AC motor supports orbital or reciprocal shaking motion maximum load up to 35 kgs
|
|
Convenience |
|

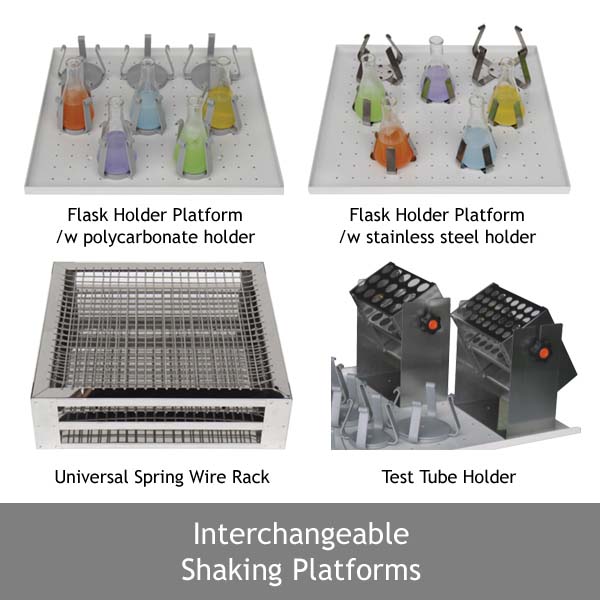

Height adjustable level feet for balancing, anti-vibration Various choice of shaking platforms - Oversized platform for large capacity load - Reciprocal Motion Adaptor - Universal Spring Rack - Universal Flask Holder Platform - Dedicated Flask Holder Platform - Non slip Rubber Mat - Size adjustable poly-carbonate flask holder - Stainless steel flask holder - Test Tube Rack
|
|
Safety |
|
MAX RPM Cut-Off motor and AUDIO VISUAL ALARM Motor failure ALARM OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Platform Size |
Elec. Req. |
Net Wt. |
Ship Wt. |
|
JSOS-500 |
Orbital Shaker |
W495 x D495 mm W700 x D650 mm |
220 VAC 50/60 Hz |
30 kg |
35 kg |
|
(Orbital Shaker supplied without shaking platform and accessories) |
|||||
Optional Accessories
|
|
|
Art No. |
Descriptions |
|
no image |
|
PHF-P11 |
Adaptor Kit for Reciprocal Motion |
|
|
|
PHF-U50 |
Universal Spring Rack W490 x D470 mm |
|
|
|
|
Flask loading capacity (approx.) 100 ml 20 ea 250 ml 12 ea 500 ml 9 ea 1000 ml 5 ea 2000 ml 4 ea |
|
|
|
PHF-P60 |

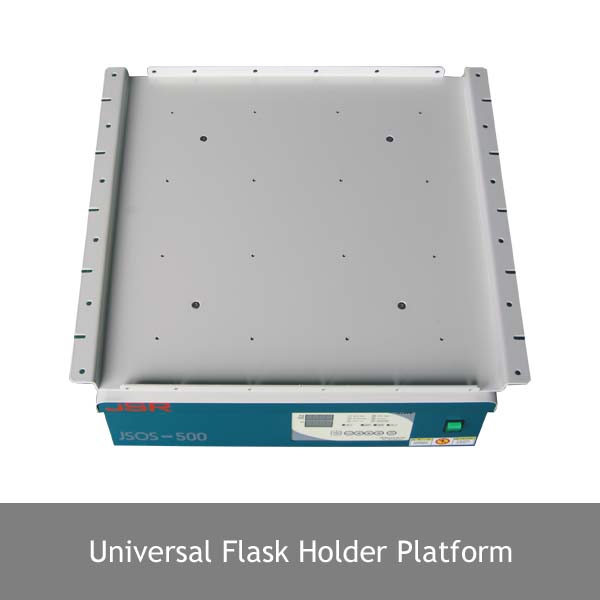

Universal Flask Holder Platform W495 x D495 mm |
|
|
|
|
supplied without flask holders Flask loading capacity (approx) 50 ~ 100 ml 25 ea 200 ~ 300 ml 16 ea 500 ml 16 ea 1000 ml 9 ea 2000 ml 5 ea |
|
|
|
PHF-P61 |
Dedicated Flask Holder Platform W495 x D495 mm |
|
|
|
|
Including 36 ea x 50 ~ 100 ml polycarbonate flasks holder |
|
|
|
PHF-P62 |
Dedicated Flask Holder Platform W495 x D495 mm |
|
|
|
|
Including 25 ea x 200 ~ 300 ml polycarbonate flasks holder |
|
|
|
PHF-P63 |
Dedicated Flask Holder Platform W495 x D495 mm |
|
|
|
|
Including 16 ea x 500 ~ 1000 ml polycarbonate flasks holder |
|
|
|
PHF-M60 |

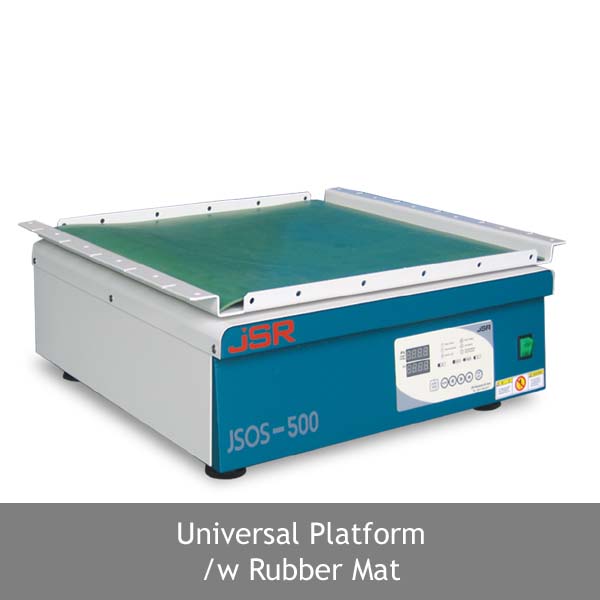

Non-Slip Rubber Mat W495 x D495 mm |
|
|
|
|
|
|
|
|
PHF-U70 |
Oversized Universal Spring Rack W690 x D650 mm |
|
|
|
|
Flask loading capacity (approx) 100 ml 42 ea 250 ml 25 ea 500 ml 19 ea 1000 ml 15 ea 2000 ml 8 ea |
|
|
|
PHF-P70 |
Oversized Universal Flask Holder Platform W700 x D650 mm |
|
|
|
|
supplied without flask holders Flask loading capacity (approx) 50 ~ 100 ml 41 ea 200 ~ 300 ml 25 ea 500 ml 25 ea 1000 ml 16 ea 2000 ml 9 ea 3000 ml 9 ea 5000 ml 5 ea |
|
|
|
PHF-P71 |
Dedicated Flask Holder Platform W700 x D650 mm |
|
|
|
|
Including 72 ea x 50 ~ 100 ml polycarbonate flasks holder |
|
|
|
PHF-P72 |
Dedicated Flask Holder Platform W700 x D650 mm |
|
|
|
|
Including 42 ea x 200 ~ 300 ml polycarbonate flasks holder |
|
|
|
PHF-P73 |
Dedicated Flask Holder Platform W700 x D650 mm |
|
|
|
|
Including 25 ea x 500 ~ 1000 ml polycarbonate flasks holder |
|
|
|
PHF-M70 |
Non-Slip Rubber Mat W700 x D650 mm |
|
|
|
|
|
|
|
|
Art No. |
Polycarbonate Flask Holder (Size Adjustable) |
|
|
|
PHF-P01 |
50 ~ 100 ml |
|
PHF-P02 |
200 ~ 300 ml |
||
|
PHF-P03 |
500 ~ 1000 ml |
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
Art No. |
Stainless Steel Flask Holder (Size Adjustable) |
|
|
|
PHF-S01 |
100 ml |
|
PHF-S02 |
250 ml |
||
|
PHF-S03 |
500 ml |
||
|
PHF-S04 |
1000 ml |
||
|
PHF-S05 |
2000 ml |
||
|
PHF-S06 |
3000 ml |
||
|
PHF-S07 |
5000 ml |
||
|
|
|
Art No. |
Test Tube Holder |
|
|
|
PHF-T01 |
8 mm Dia. for 80 test tubes |
|
PHF-T02 |
10 mm Dia. for 80 test tubes |
||
|
PHF-T03 |
12 mm Dia. for 54 test tubes |
||
|
PHF-T04 |
14 mm Dia. for 54 test tubes |
||
|
PHF-T05 |
16 mm Dia. for 30 test tubes |
||
|
PHF-T06 |
25 mm Dia. for 15 test tubes |
||
|
PHF-T07 |
35 mm Dia. for 8 test tubes |
