Autoclave / Steam Sterilizer

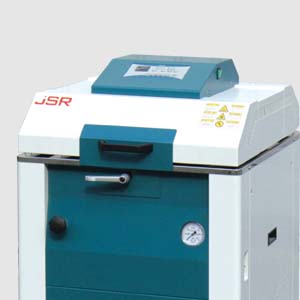

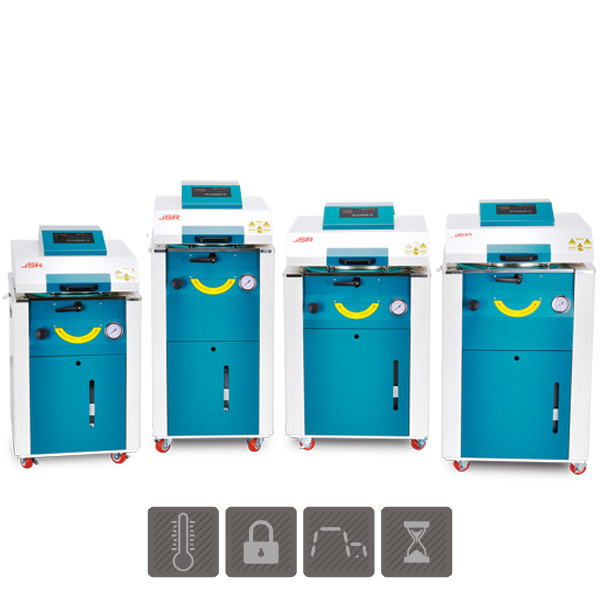

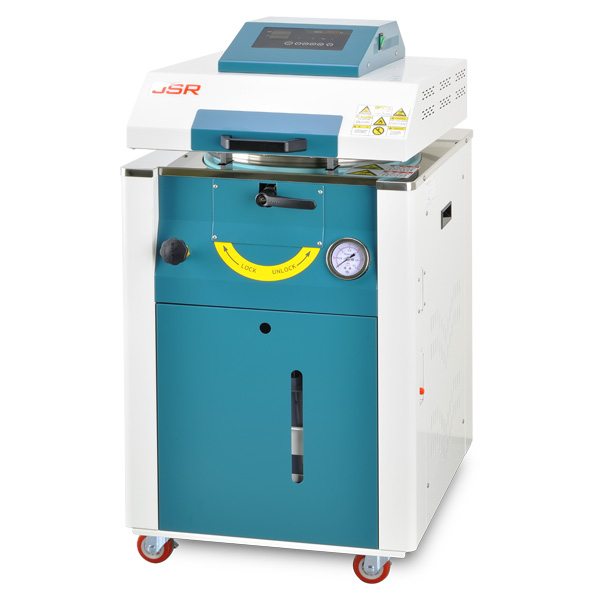

JSAT-Series Autoclave, Steam Sterilizer is an innovative replacement of conventional laboratory autoclave by providing reliable performance, up-to-dated design and safety door inter-lock system integrated with temperature and pressure for perfect user safety.
 |
catalog-jsat-autoclave-eng.pdf |
Specifications
|
Temp. Range |
Maximum 123 oC |
|
Accuracy |
± 0.5 oC at 121 oC |
|
Uniformity |
within + 2.0 oC above 121 oC |
|
Pressure |
up to 0.12 Mpa |
|
Control |
Fully Automatic Sterilization Process |
|
|
Microprocessor PID Control |
|
|
Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Safety Door Lock |
|
|
Over-Temperature Cut-Off |
|
|
Over-Pressure Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Service Basket -Stainless steel 304 wire basket |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 or 30 AMP |
Features
 |

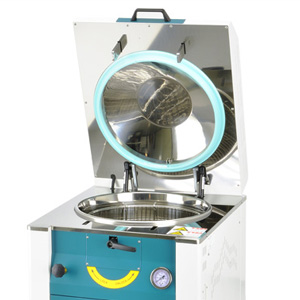

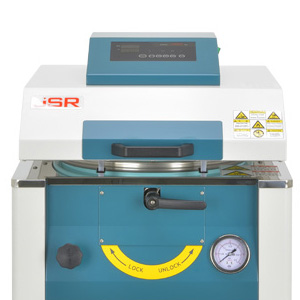

Fully Automatic Digital Controller
Safety Door Interlocking System
|
|
 |
Light Weight Gas Lifting Door
Durable Silicone Gasket Stainless Steel 304 Door and Top
|
|
 |
Stainless Steel 304 Chamber Heater Protection Cover
|
|
 |

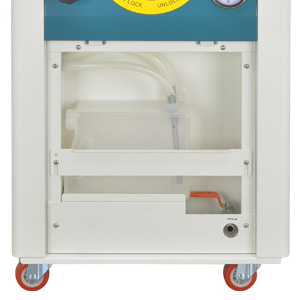

Steam Collection Bottles
Drain Valve 0.2um Air Filter
|
|
 |
IQ/OQ/PQ Validation Ready
|
|

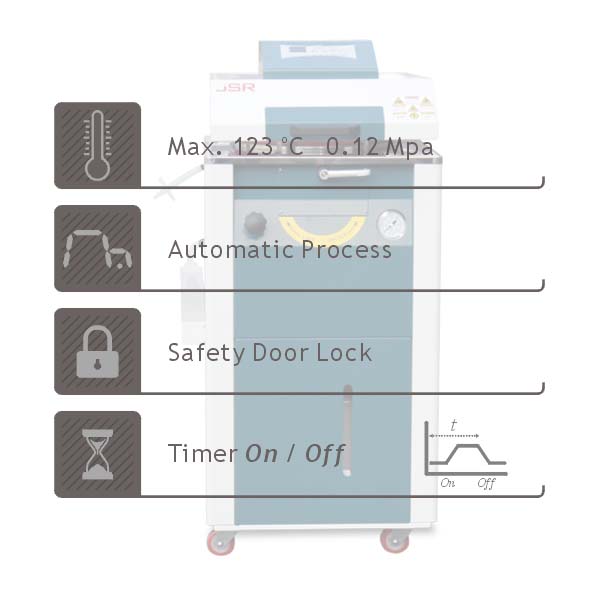

PERFORMANCE |
|
- Maximum sterilization temperature and pressure up to 123 oC and 0.13 Mpa - Automatic sterilization cycle starts just by setting sterilization temperature and time - Validation compliance performance with accuracy within ± 0.5 oC and uniformity within ± 2.0 oC
|
|
CONTROLLER |
|

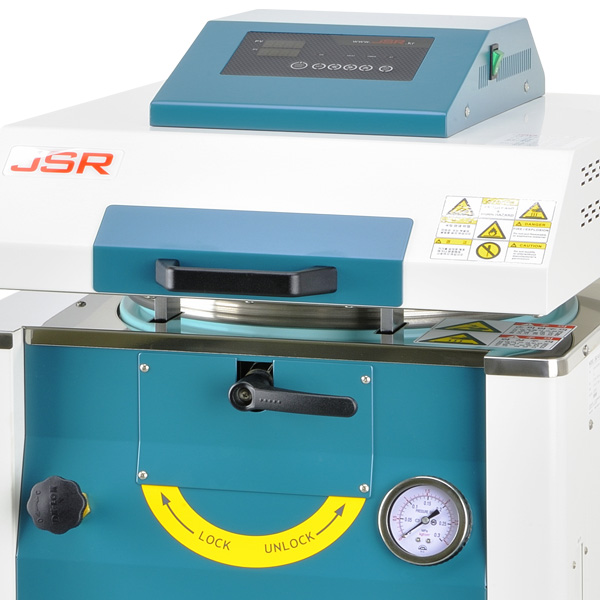

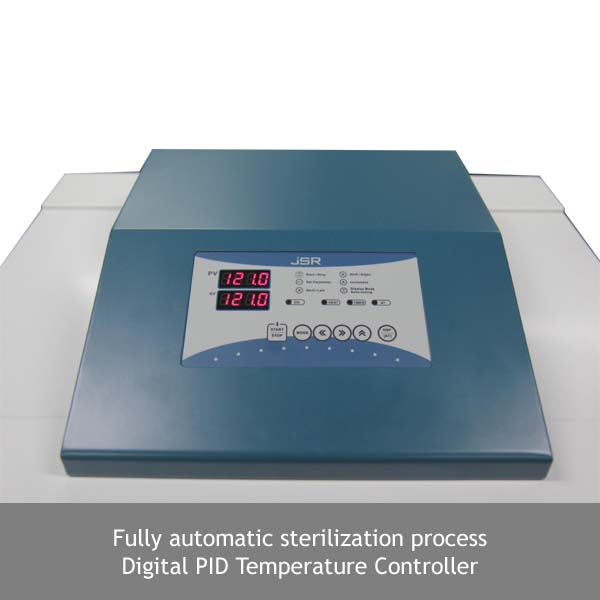

- JSC-2D Digital PID Controller with ±0.1 oC resolution - Automatic START/STOP timer - Dual LED displays temperature and remaining time - Temperature calibration function and Auto-tuning function - Class A Pt-100 Ω sensor
|
|
CONSTRUCTION |
|

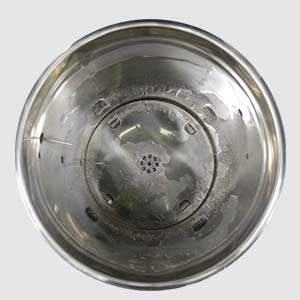

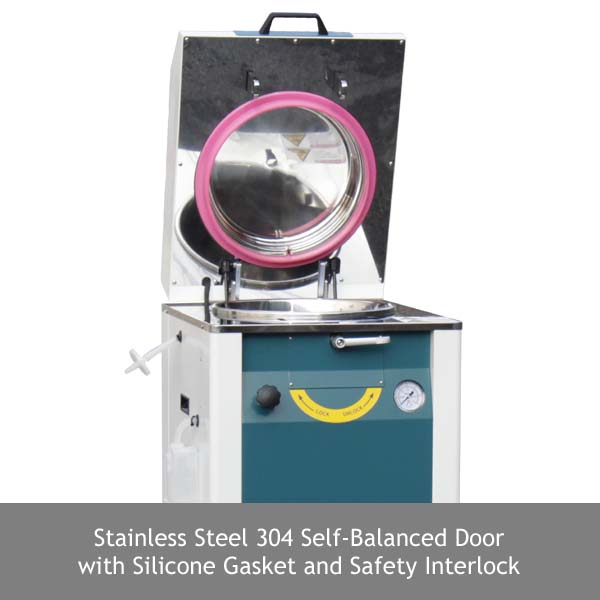

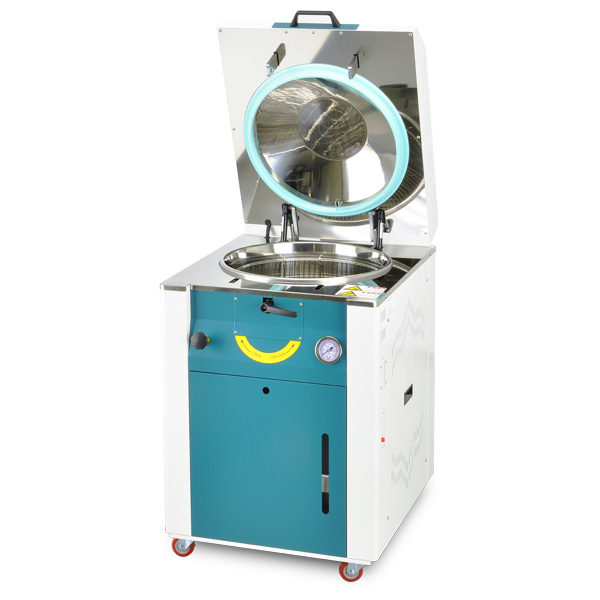

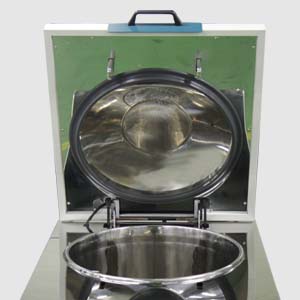

- Vertical loading type chamber with 2 ea service baskets - Light-weight lifting door - SAFETY DOOR INTER-LOCKING SYSTEM lock the door during operation which integrated with temperature, pressure in the chamber and in case electric cut-off - Stainless steel 304 (AISI 304) chamber, lid and top plate to protect from corrosion by water and steam - Special plated heating element provides resistant to dry-burn, corrosion and guarantee long life in repeated use - Two Stainless Steel Wire Basket included
|
|
CONVENIENCE |
|
- Two steam collection bottles removes most of steam generated during operation for comfortable laboratory environment - Equipped with drain valve for cleaning and changing with fresh water - High pressure and temperature resistant silicone gasket - Built-in analog pressure gauge - Manual pressure release valve - Caster for easy transport
|
|
SAFETY |
|
- SAFETY DOOR LOCK with Door interlocking system integrated with high temperature, pressure and electric cut-off - TRIPLE OVER-TEMP. CUT-OFF Controller cut-off heater and AUDIO VISUAL ALARMS in case +2 oC above set temperature MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1 oC above maximum limit (123 oC ) - TRIPLE OVER-PRESSURE CUT-OFF Controller open valve to release excess pressure and AUDIO VISUAL ALARM in case +2℃ above set temperature Controller open valve to release excess pressure and AUDIO VISUAL ALARM in case +1℃ above maximum limit +123 oC Mechanical over pressure valve automatically release excess pressure in case over maximum pressure limit 0.15 Mpa - ANALOG PRESSURE GAUGE Analog system cut-off heater 10% above set temp. 0 ~ 0.3 Mpa pressure gauge indicating actual pressure - MANUAL PRESSURE RELEASE VALVE for emergency - OVER CURRENT CUT-OFF : Electrical Leakage Breaker
|
Models
|
Art No. |
|||||
|
Chamber Volume |
45 L |
65 L |
85 L |
105 L |
|
|
Dimensions |
Inner |
∅350 x H490 |
∅350 x H680 | ∅450 x H535 | ∅450 x H665 |
|
Dia. x H mm |
Usable |
∅350 x H410 |
∅350 x H620 | ∅450 x H480 | ∅450 x H610 |
|
W x D x H mm |
Outer |
555 x 670 x 955 |
555 x 670 x 1105 |
655 x 780 x 1010 |
655 x 780 x 1110 |
|
|
Basket |
∅330 x H195 |
∅330 x H280 | ∅430 x H220 | ∅430 x H270 |
|
Temperature Range |
Up to 123 oC |
||||
|
Accuracy at 121 oC |
± 0.5 oC |
||||
|
Uniformity at 121 oC |
within + 2.0 oC |
||||
|
No. of Service Basket |
2 |
||||
|
Heater Capacity |
2.0 kW |
2.5 kW |
3.0 kW |
4.0 kW |
|
|
Power Rating |
9.1 Amp |
11.4 Amp |
13.6 Amp |
18.2 Amp |
|
|
Electrical Requirements |
220 VAC 50/60Hz 1 Phase |
||||
|
Power Plug |
CEE 7/7 Schuko |
30 AMP |
|||
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSAT-45 |
Autoclave |
220 VAC 50/60 Hz 1P |
45 L |
80 kg |
105 kg |
|
JSAT-65 |
Autoclave |
220 VAC 50/60 Hz 1P |
65 L |
95 kg |
120 kg |
|
JSAT-85 |
Autoclave |
220 VAC 50/60 Hz 1P |
85 L |
110 kg |
135 kg |
|
JSAT-105 |
Autoclave |
220 VAC 50/60 Hz 1P |
105 L |
125 kg |
150 kg |
Optional Accessories
|
Art No. |
Built-in Thermal Printer |
|
PER-A08 |
Thermal Printer |
|
|
|
|
Art No. |
Stainless Steel 304 Wire Basket |
|
PHG-A05 |
for JSAT-45, JSAT-65, ø350 mm |
|
PHG-A06 |
for JSAT-85, JSAT-105, ø450 mm |
