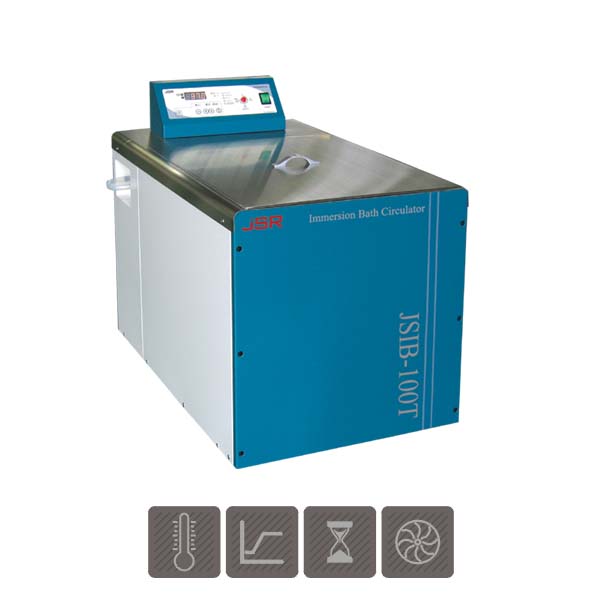

Large Capacity Circulation Bath
|
Superior Thermal Uniformity: |
High-Capacity External Pump: |
Versatile Applications: |
Instrument Temperature Control: |
|
Unlike conventional static baths, the active internal circulation mechanism maintains a precise thermal uniformity of ±0.2°C.
|
Delivers a powerful flow rate of 13 liters/min at 0.5 bar pressure to support external closed-loop systems.
|
Perfect for everyday sample preparation, including the warming of reagents/media, thawing, and tempering samples.
|
Provides reliable, stable temperature management for a wide variety of connected laboratory equipment.
|
----

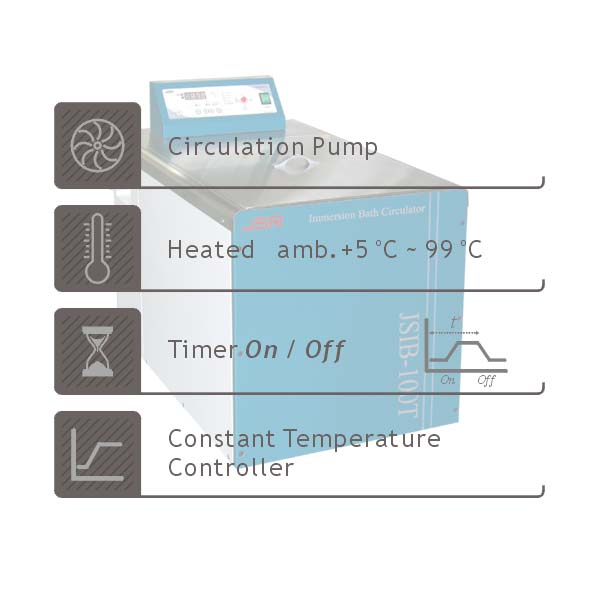

Features
Controller
· JSC-0D Digital PID Controller: Provides high-precision ±0.1°C control with an easy-to-read LED display.
· Automatic Start/Stop Timer: Offers adjustable scales (99 min 59 sec / 99 hr 59 min / 99 days 23 hr) or continuous operation.
· Advanced Tuning: Features built-in temperature calibration and an auto-tuning function.
· Sensor Type: Premium pt-100Ω sensor for accurate thermal monitoring.
Construction
· Durable, epoxy powder-coated metallic exterior casing.
· Heavy-duty Stainless Steel 304 components including the bath, immersion heater, lid, and perforated protective cover.
· Corrosion-resistant polycarbonate magnetic-driven pump assembly.
Performance
· Temperature Range: Ambient +5°C to 99°C.
· Accuracy & Uniformity: Control accuracy within ±0.2°C and thermal uniformity within ±0.5°C.
· Rapid Heating: Corrosion-resistant Stainless Steel 304 sheath immersion heater directly heats water in the bath to reach the set temperature quickly.
· Magnetic Driven Circulation Pump: Efficiently circulates thermal fluid internally for higher temperature uniformity, or transfers fluid to an external closed-loop system at a 13 L/min flow rate and 0.5 bar pressure.
Convenience
· Easy-to-clean Stainless Steel 304 bath interior.
· Integrated drain port for effortless emptying of the bath fluid.
· Supplied with a flat stainless steel cover to drastically reduce heat loss and fluid evaporation.
· Equipped with a $\varnothing$9 mm hose barb fitting for quick external circulation connectivity.
Safety Systems
· Triple-Layer Over-Temperature Protection:
o Digital Cut-Off: Shuts down the heater and triggers an audio-visual alarm if the temperature rises +2°C above the setpoint.
o Analog Backup: Independent safety cut-off engages if the temperature exceeds 10% above the setpoint.
o Max Temperature Limit: Hard cut-off with an audio-visual alarm if the unit exceeds its absolute maximum temperature limit by +1°C.
· Sensor Disconnection Alarm: Alerts the user immediately if sensor continuity is lost.
· Low Water Level Cut-Off: Prevents dry boiling and protects the immersion elements.
· Electrical Safety: Over-current circuit breaker protection.
-
Specifications
|
Heating |
Direct Immersion Sheath Heater |
|
|
With Magnetic Driven internal/external circulation pump |
|
Temp. Range |
ambient + 5°C ~ 99°C |
|
Accuracy |
± 0.2°C at 37.0°C (JSIB-50T) |
|
Uniformity |
± 0.5°C at 37.0°C (JSIB-50T) |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Circulation |
Magnetic Driven Circulation Pump |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
|
Low Water Level Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Bath –Stainless Steel 304 |
|
|
Lid –Stainless Steel 304 |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
-----
Model
|
Art No. |
|||
|
Bath Volume (Capacity) |
50 L |
100 L |
|
|
Dimensions |
Inner |
300 x 400 x 400 |
400 x 500 x 500 |
|
W x D x H mm |
Usable |
300 x 400 x 350 |
400 x 500 x 450 |
|
|
Outer |
385 x 665 x 685 |
485 x 765 x 785 |
|
Temperature Range |
ambient+5°C to 99°C |
||
|
Accuracy at 37.0°C |
± 0.2°C |
||
|
Uniformity at 37.0°C |
± 0.5°C |
||
|
Water Circulation |
Magnetic Driven Circulation Pump |
||
|
Drain Valve |
Yes |
||
|
Inlet/Outlet Fitting |
∅9 mm hose barb |
||
|
Heater Capacity |
3.0 kW |
5.0 kW |
|
|
Power Rating |
14.0 Amp |
23.0 Amp |
|
|
Power Plug |
CEE 7/7 Schuko |
30 Amp |
|
-----
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSIB-50T |
Immersion Circulation Bath |
220 VAC 50/60 Hz |
50 L |
32 kg |
47 kg |
|
JSIB-100T |
Immersion Circulation Bath |
220 VAC 50/60 Hz |
100 L |
50 kg |
55 kg |
