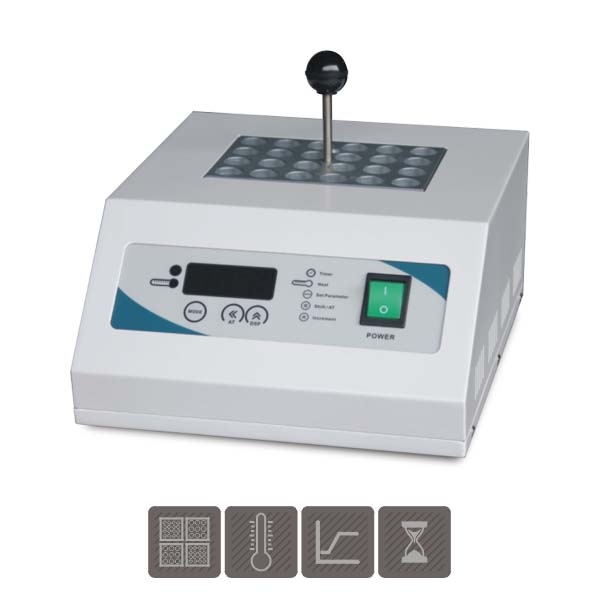

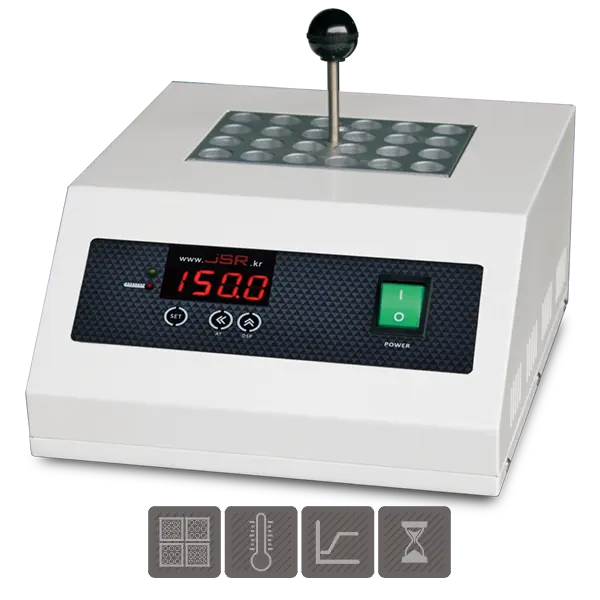

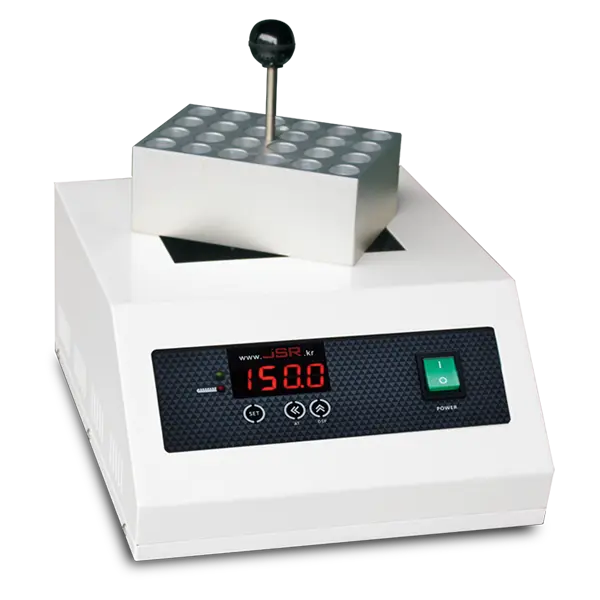

Dry Block Heater
-----
| Scalable Capacity: | Versatile Tube Accommodation: | Ideal Applications: |
|

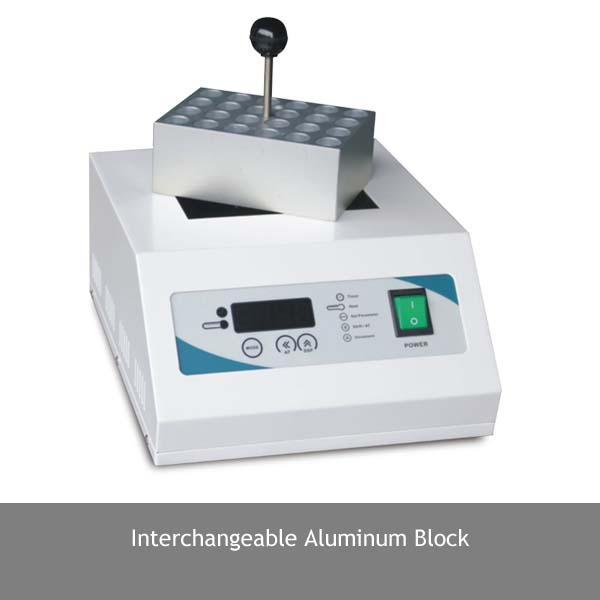

The heating base accommodates 1, 2, or 4 interchangeable modular blocks to easily scale with your laboratory's throughput and varying vessel sizes. |

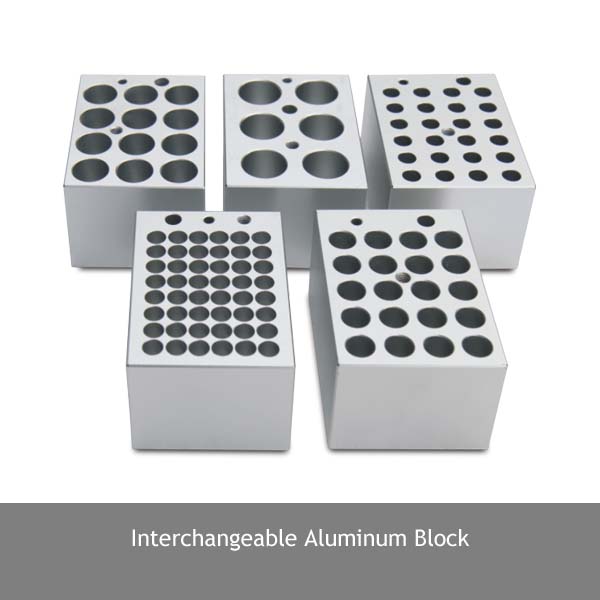

Anodized aluminum blocks are available for PCR tubes, Eppendorf tubes, microcentrifuge tubes, and a variety of other laboratory vessels. |
Perfect for incubation, enzyme assays, inactivation, boiling, wet washing, extraction, sample concentration, and more. |
-----
-----
Features
----Controller
· JSC-0D Digital PID Controller: Offers high-precision 0.1°C control with an easy-to-read LED display.
· Automatic Start/Stop Timer: Supports flexible configurations including 99 min 59 sec / 99 hr 59 min / 99 days 23 hr, or continuous operation.
· Advanced Features: Built-in temperature calibration and auto-tuning functions.
· Sensor Type: High-accuracy Pt-100Ω sensor.
----Construction
· Durable, epoxy powder-coated metallic casing.
· Corrosion-resistant Stainless Steel 304 bath.
· Premium anodized modular aluminum blocks.
----Performance
· Efficient Heat Transfer: Sub-bath heating element transfers heat directly through the aluminum block to ensure uniform temperature distribution.
· Precision Monitoring: Pt-100Ω sensor is embedded directly into the modular block to measure the actual block temperature accurately.
· Temperature Range: Mainally maintains block temperatures from ambient +5°C to 180°C.
· Accuracy & Uniformity: Exceptional control accuracy within ±0.5°C and thermal uniformity within ±3.0°C.
----Convenience
· Robust, corrosion-resistant Stainless Steel 304 (ASTM 304) solid bath interior.
· Wide selection of interchangeable modular blocks available as accessories for diverse applications.
· Included block extraction tool allows for safe and easy block removal.
· Integrated thermometer hole in the aluminum block for independent temperature verification and calibration.
----Safety
· Dual Over-Temperature Cut-Off: * Digital Cut-Off: Automatically shuts off the heater and triggers an audio-visual alarm if the temperature rises +2°C above the setpoint.
· Sensor Disconnection Alarm: Alerts the user instantly if the sensor connection is lost.
· Over-Current Protection: Integrated fuse system.
-
Specifications
|
Heating |
Heat transduction through aluminum block |
|
Temp. Range |
ambient + 10°C ~ 180°C |
|
Accuracy |
± 0.5°C at 60.0°C |
|
Uniformity |
± 3.0°C at 60.0°C |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Bath – Stainless Steel 304 |
|
|
Block – Anodized Aluminum |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko |
-----
Model
|
Art No. |
||||
|
Modular Block Capacity |
1 |
2 |
4 |
|
|
Dimensions |
Inner |
90 x 65 x 50 |
130 x 90 x 50 |
130 x 180 x 50 |
|
W x D x H mm |
Outer |
180 x 245 x 110 |
220 x 270 x 110 |
220 x 360 x 110 |
|
|
Block |
90 x 65 x 50 |
||
|
Temperature Range |
ambient+5°C to 180°C |
|||
|
Accuracy at 60.0°C |
± 0.5°C |
|||
|
Uniformity at 60.0°C |
± 3.0°C |
|||
|
Heat up time to 60.0°C |
8 min. |
10 min. |
14 min. |
|
|
Heater Capacity |
150 Watt |
200 Watt |
400 Watt |
|
|
Power Rating |
0.7 Amp |
0.9 Amp |
1.8 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard |
|||
-----
Ordering Information
|
Art No. |
Descriptions |
Block Capacity |
Elec. Req. |
Net Wt. |
Ship Wt. |
|
JSBL-01T |
Dry Block Heater |
1 |
220 VAC 50/60 Hz |
3.5 kg |
4.0 kg |
|
JSBL-02T |
Dry Block Heater |
2 |
220 VAC 50/60 Hz |
4.0 kg |
5.0 kg |
|
JSBL-04T |
Dry Block Heater |
4 |
220 VAC 50/60 Hz |
5.0 kg |
6.0 kg |
-

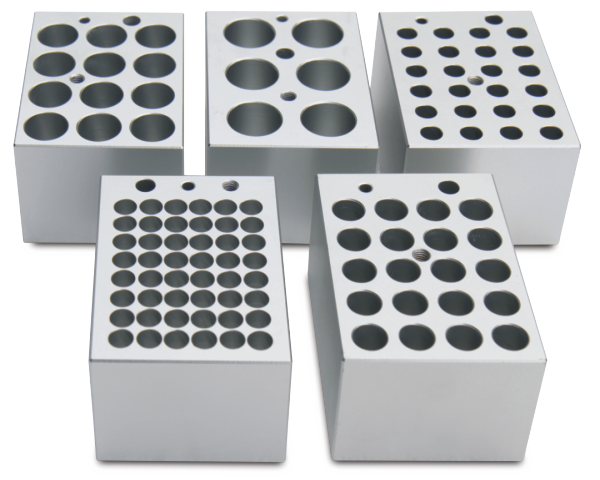

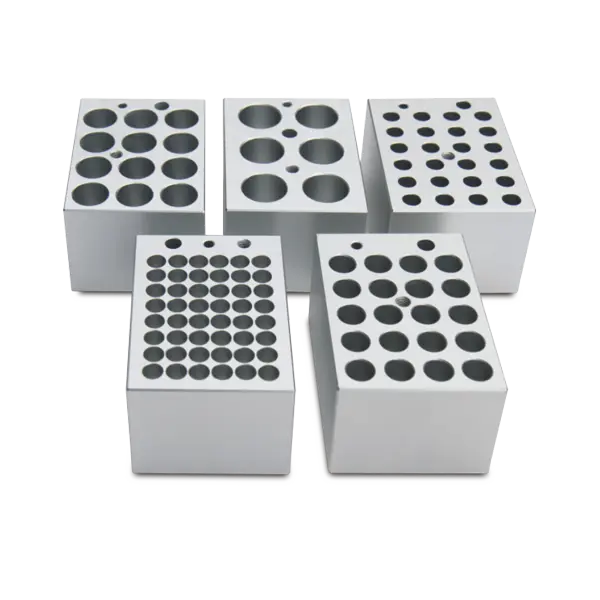

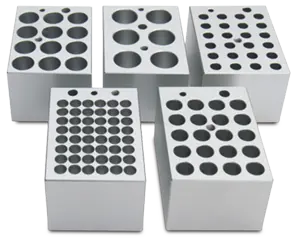

Optional Accessories
|
Art No. |
Modular Aluminum Block |
|
PHA-02B |
48 x 0.2 ml PCR Tubes or Strips |
|
PHA-05B |
24 x 0.5 ml PCR Tubes or Strips |
|
PHA-15B |
20 x 1.5 ml Tubes |
|
PHA-16B |
12 x ∅16 mm Tubes |
|
PHA-24B |
6 x ∅24 mm Tubes |

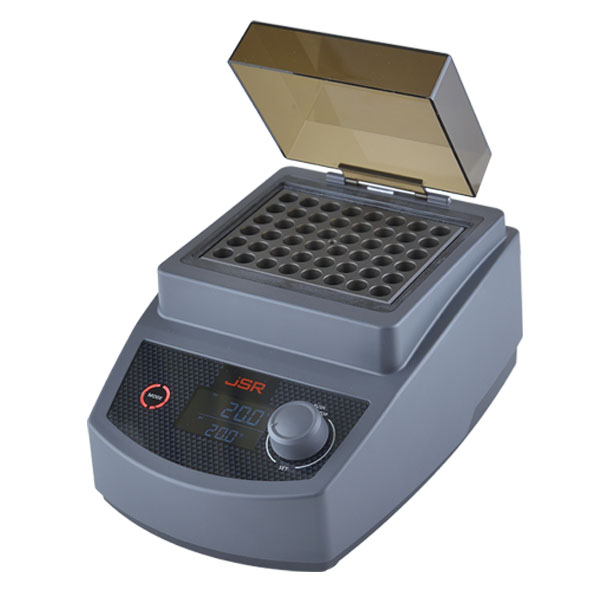

Dry Bath Block Heater
