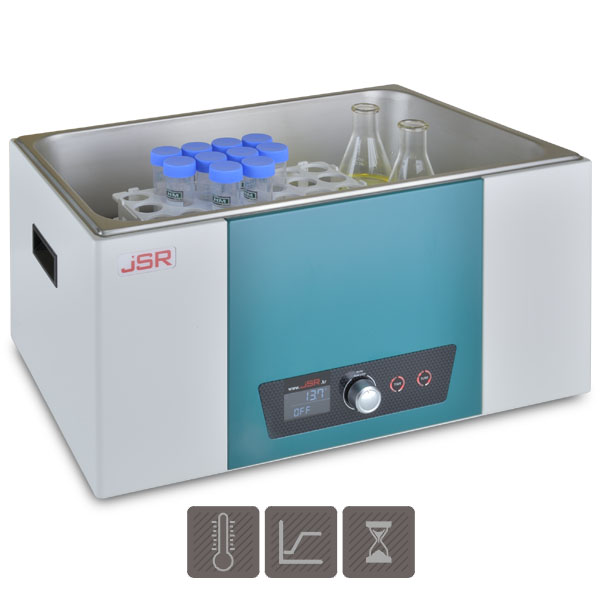

Heated Digital Water Bath (직접가열식 항온수조)
JSWB-T Series Digital Water Bath to provides constant temperature environment by heating water for biotechnology, chemistry, medical, environmental and general laboratory applications of temperature range from ambient +5°C to 99°C
 |
download_catalog_digital_water_bath.pdf |
Specifications
|
Heating |
Direct Immersion Sheath Heater |
|
Temp. Range |
ambient + 5°C ~ 99°C |
|
Accuracy |
± 0.2°C at 37.0°C (JSWB-11T) |
|
Uniformity |
± 0.8°C at 37.0°C (JSWB-11T) |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Bath – Electro-polished Seamless Stainless Steel 304 |
|
|
Heater Cover – Perforated Stainless Steel 304 |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|||||
|
Bath Volume |
6 L |
11 L |
22 L |
30 L |
|
|
Dimensions |
Inner |
300 x 155 x 150 |
300 x 240 x 150 |
500 x 300 x 150 |
500 x 300 x 200 |
|
W x D x H mm |
Usable |
300 x 155 x 110 |
300 x 240 x 110 |
500 x 300 x 110 |
500 x 300 x 160 |
|
|
Outer |
340 x 200 x 270 |
240 x 285 x 270 |
545 x 345 x 270 |
545 x 345 x 320 |
|
Temperature Range |
ambient+5°C to 99°C |
||||
|
Accuracy at 37.0°C |
± 0.2°C |
± 0.2°C |
± 0.2°C |
± 0.3°C |
|
|
Uniformity at 37.0°C |
± 0.8°C |
± 0.8°C |
± 0.8°C |
± 1.0°C |
|
|
Drain Valve |
none |
none |
yes |
yes |
|
|
Heater Capacity |
600 W |
1.0 kW |
1.5 kW |
2.0 kW |
|
|
Power Rating |
2.7 Amp |
4.6 Amp |
6.8 Amp |
9.2 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
||||
Features
|
Controller |
|

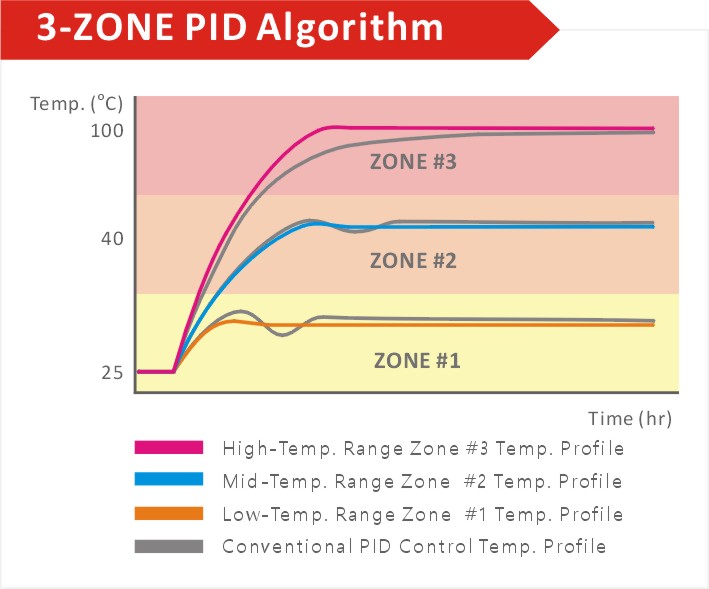

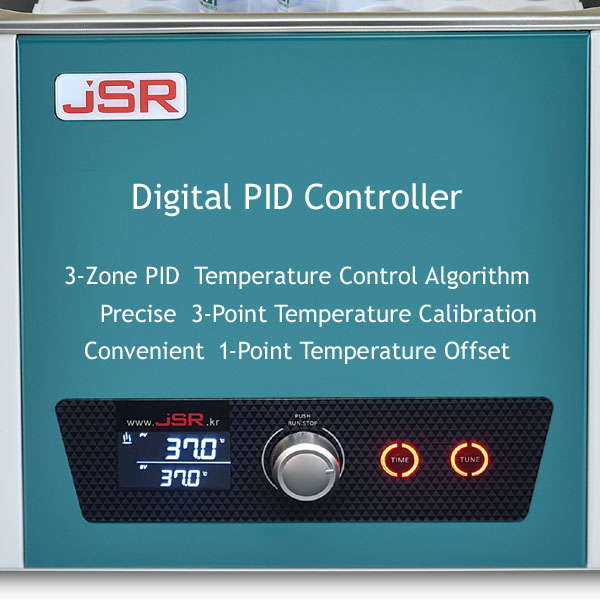

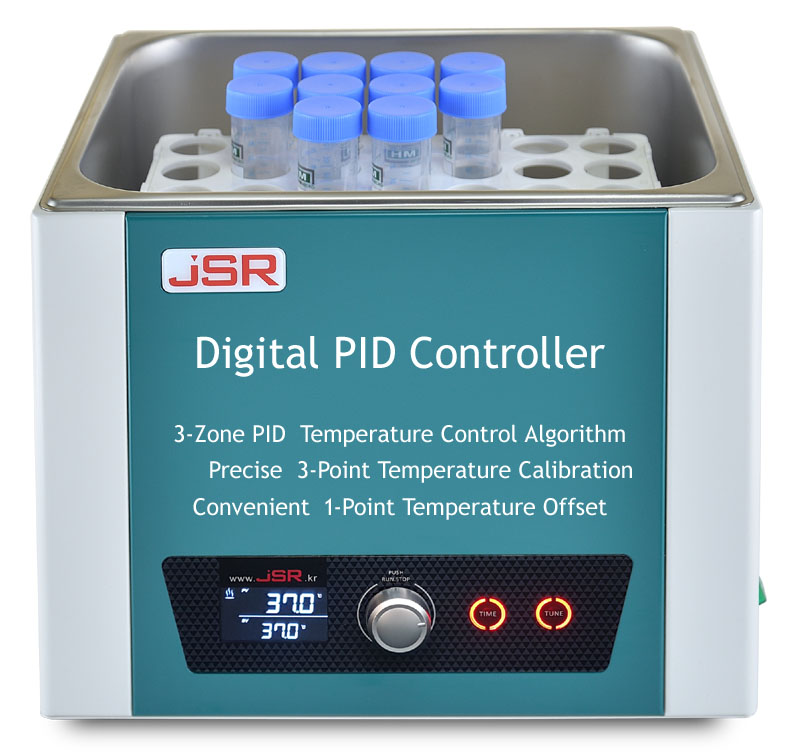

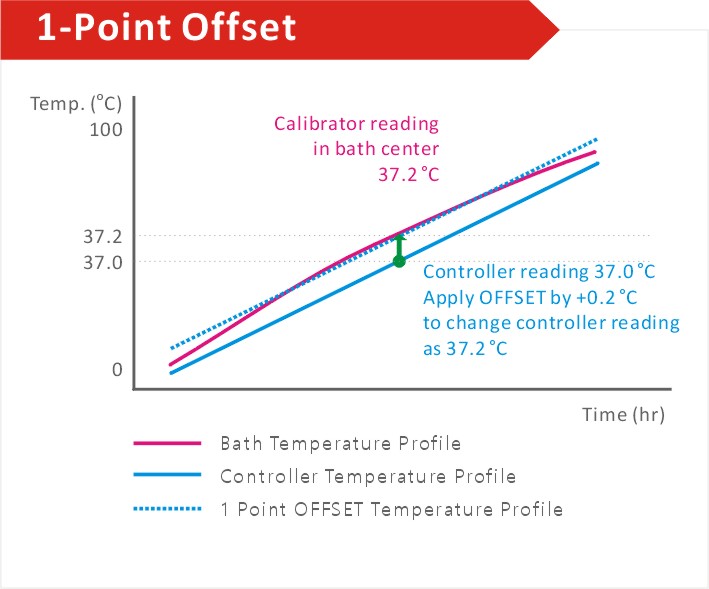

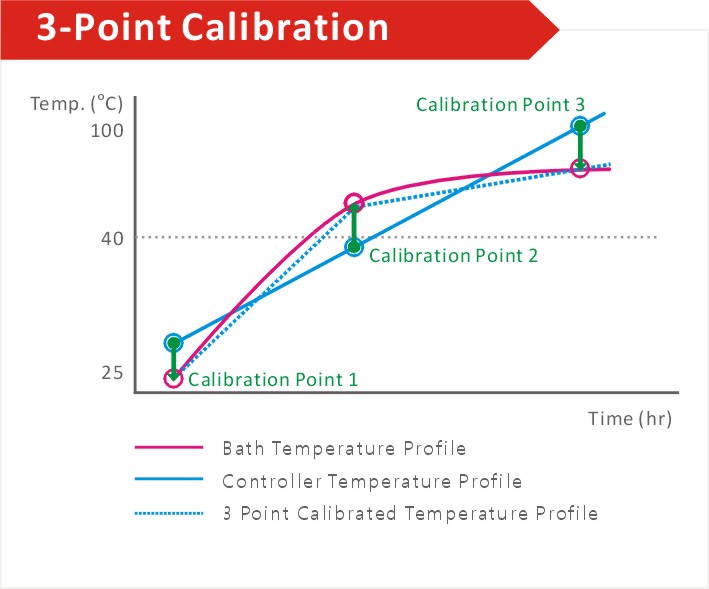

JSC-0D Digital PID Controller ±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Corrosion resistant Seamless Electro-Polished Stainless Steel 304 bath Corrosion resistant Stainless Steel 304 sheath immersion heater Corrosion resistant Stainless Steel 304 flat lid included Perforated heater cover (bottom plate) included
|
|
Performance |
|
Maintain water temperature from ambient + 5°C to 99°C Excellent control accuracy within ± 0.2°C and thermal uniformity within ± 0.8°C Corrosion resistant Stainless Steel 304 sheath immersion heater directly heating water in the bath to reach set temperature quickly Perforated heater cover helps convection of heated water circulation throughout bath to maintain thermal uniformity of the bath
|
|
Convenience |
|
Easy to clean Electro-Polished seamless Stainless Steel 304 Bath Perforated stainless steel bottom plate Drain for easy emptying of the bath fluid Supplied with stainless steel flat cover to help reduce heat losses and evaporation
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Fuse
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSWB-06T |
Digital Water Bath |
220 VAC 50/60 Hz |
6 L |
7 kg |
7.5 kg |
|
JSWB-11T |
Digital Water Bath |
220 VAC 50/60 Hz |
11 L |
8 kg |
8.5 kg |
|
JSWB-22T |
Digital Water Bath |
220 VAC 50/60 Hz |
22 L |
11 kg |
13 kg |
|
JSWB-30T |
Digital Water Bath |
220 VAC 50/60 Hz |
30 L |
13 kg |
15 kg |
Optional Accessories
|
Art No. |
Gabled Lid Stainless Steel 304 |
|
PHL-W06 |
for JSWB-06T |
|
PHL-W11 |
for JSWB-11T |
|
PHL-W22 |
for JSWB-22T |
|
PHL-W30 |
for JSWB-30T |
